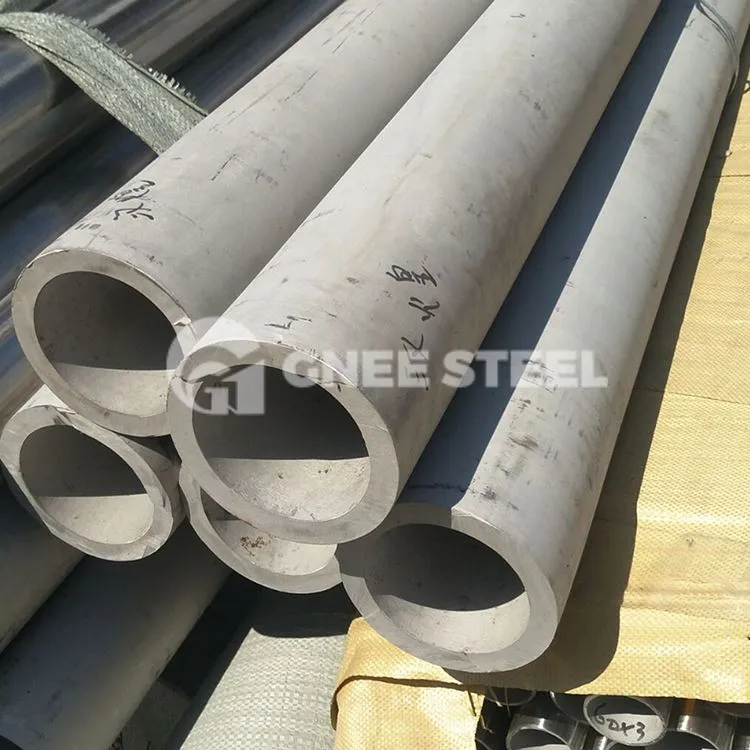

ASTM A688 Welded Austenitic Stainless hlau kav
ASTM A688 / A688M npog seamless thiab welded austenitic stainless hlau feedwater rhaub tubing, nrog rau stainless hlau U-khoov rau tubular feedwater rhaub, thiab npog tubing qhov ntau thiab tsawg uas yuav tsum muaj ib tug sab nraud txoj kab uas hla ntawm 5 ⁄8 nyob rau hauv. [15.9 rau 25.4 mm. ] thiab qhov nruab nrab lossis tsawg kawg ntawm phab ntsa thickness ntawm {{10}}.028 nyob rau hauv. [0.7 mm] los yog tuab dua.
| Txheem: |
JIS, ASTM, DIN, EN |
Qhov Chaw Keeb Kwm: |
Zhejiang, Suav teb (Mainland) |
| Qauv nab npawb: |
Stainless hlau welded kav |
Hom: |
Welded |
| Daim ntawv thov: |
Petroleum thiab tshuaj lom neeg kev lag luam, Txhua yam kua kis tau tus mob |
Hom Lub Npe: |
Yaang |
| Thickness: |
{0}}3-6.0mm |
Sab nraud txoj kab uas hla: |
6-219 hli |
Ntim & Xa
| Ntim Cov Lus Qhia: | raws li tus neeg yuav tsum tau los yog export tus qauv |
| Delivery Detail: | 2 - 15 hnub tom qab kev pom zoo |
Tshuaj muaj pes tsawg leeg ntawm A688 Stainless hlau welded yeeb nkab
| Elem-ent | Qib | TIAB SA 304 | TP 304 L | TP 304 LN | TIAB SA 316 | TP 316 L | TP 316 LN | TP XM -29 | TIAB SA 304N | TIAB SA 316N |
| % | UNS | S30400 | S30403 | S30453 | S31600 | S31603 | S31653 | S24000 | S30451 | S31651 |
| C, max | 0.08 | 0.035 | 0.035 | 0.08 | 0.035 | 0.035 | 0.060 | 0.08 | 0.08 | |
| Mn, mas | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 11.50-14.50 | 2.00 | 2.00 | |
| Ph, max | 0.040 | 0.040 | 0.040 | 0.040 | 0.040 | 0.040 | 0.060 | 0.040 | 0.040 | |
| S, max | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | |
| Si, max | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.00 | 0.75 | 0.75 | |
| Ni | 8.00-11.00 | 8.00-13.00 | 8.00-13.00 | 10.00-14.00 | 10.00-15.00 | 10.00-15.00 | 2.25-3.75 | 8.00-1.00 | 10.00-14.00 | |
| Cr | 18.00-20.00 | 18.00-20.00 | 18.00-20.00 | 16.00-18.00 | 16.00-18.00 | 16.00-18.00 | 17.00-19.00 | 18.00-20.00 | 16.00-18.00 | |
| Mo | - | - | - | 2.00-3.00 | 2.00-3.00 | 2.00-3.00 | - | - | 2.00-3.00 | |
| N | - | - | 0.10-0.16 | - | - | 0.10-0.16 | 0.20-0.40 | 0.10-0.16 | 0.10-0.16 |
Kev kuaj cov chaw ntawm ASTM A688 Stainless Hlau Tubes
|
Kev kuaj kev puas tsuaj |
Cov chaw kuaj tsis muaj kev puas tsuaj |
|
Peb lub chaw kuaj mob hauv tsev tau lees paub los ntawm NABL |
|
| Kev kuaj lub cev | Laboratory Spectrometer & Portable Spectrometer |
| Flattening Test | Kev Ntsuas Cov Khoom Siv Zoo (PMI). |
| Kev Ntsuas Siab | Micro Structure Examination Test / Analysis |
| Flaring Test | Ferrite Number Test |
| Flange Test | Online OD Kev Ntsuas |
| Rov qab Khoov Test | Kev ntsuas qhov hnyav rau tshuaj ntsuam xyuas |
| Transverse Tesnsion Test | Online Eddy Tam Sim No Test |
| Transverse Guide Khoov Test | Ultrasonic Test rau Flaw Detection |
| Impact Test ntawm Tswj Kub | Portable UT Tester rau Thickness Measurement |
| Realtime Radiography Tests | |
| X-Ray Test - Zaj duab xis Radiography | |
| Tus Saib Xyuas Zaj Duab Xis | |
| Nto Roughness | |
| Cov yeeb yaj duab luam tawm | |
| Microscopes nrog Photograph Facility | |
| Residual Stress Test | |
| Hydrotest - Ncaj Tube thiab 'U' Khoov Tubes | |
| Cua nyob rau hauv Dej Test - Ncaj ntev mus txog 30 Meter | |
| Cua nyob rau hauv Dej Test - rau U Khoov 15 Meter | |
Stainless hlau welded yeeb nkab
