S235 JR Kauv Welded Yeeb Nkab

S235 JR kauv steel kav yog siv rau hauv kev txuag dej, dej nag thiab dej phwj tuaj, kev tswj hwm ib puag ncig, kev tsim dej, kev lag luam petrochemical, tshuaj lom neeg kev lag luam, hluav taws xob kev lag luam, kev ua liaj ua teb, kev tsim kho hauv nroog, thiab lwm yam.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

S235JR Welded Pipe Description

S235 JR Spiral steel yeeb nkab yog ib qho kauv steel yeeb nkab ua los ntawm kev khoov strips los yog coils nyob rau hauv ib tug kauv zoo thiab welding lub puab thiab sab seams siv ob-sided submerged arc tsis siv neeg vuam. Nws tuaj yeem siv dav hauv dej, hluav taws xob, tshuaj lom neeg kev lag luam, thiab lwm yam. Cov txheej txheem welding ntawm kauv welded yeeb nkab adopts submerged arc vuam. Qhov no yog ib txoj kev vuam uas siv hluav taws xob arc ua qhov cua sov. Lub arc hlawv nyob rau hauv lub npog ntawm granular fusible flux, thiab cov flux melts los ua ib tug slag npuas, uas nyob ib ncig ntawm lub pas dej ua kua molten thiaj li hais tias lub teeb arc tsis raug. Cov hlau electrode siv yog tsis tu ncua pub liab qab vuam hlau.

S235 JR SSAW Yeeb Nkab Specification

Tawm Dia	219.1 hli - 3048mm (8"{4}}")
Phab ntsa Thickness	4mm - 30 hli
Ntev	6 - 22 m
Qib Steel	API 5L: GR A, GR B, X42, X52, X46, X56, X60, X65, X70 ASTM A252 GR 1, GR 2, GR 3 BS 4360: Qib 43, Qib 50 EN: S275JR, S275J0H, S275J2H, S355JRH, S355J0H, S355J2H
Txuj	API 5L, ASTM A252, EN10217-1, 2,5, EN{5}}, BS, JIS, IS
Kev siv	Siv rau kev xa dej tsis tshua muaj siab, xws li dej, roj, thiab roj; kev tsim kho thiab piling
Nto	Fusion daim ntawv cog lus Epoxy txheej, Coal Tar Epoxy, 3PE, Vanish Txheej, Bitumen txheej, Dub Roj txheej raws li cov neeg siv khoom xav tau

En 10025 S235JR Cov Khoom Siv Tshuaj

Qib Steel		Hom deoxidation	% los ntawm huab hwm coj, siab kawg
steel npe	hlau tooj		C	SI	Mn	P	S	Nb
S235 JRH	1.0039	FF	0.17		1.4	0.04	0.04	0.009

EN 10025-2 S235jr Cov Khoom Siv Hluav Taws Xob

Qib Steel		Yam tsawg kawg yield zog MPa		Tensile zog MPa		Elongation	Impact Zog
Steel npe	Hlau tooj	thickness (mm)		thickness (mm)		% (min)	(KV J) (min)
Steel npe	Hlau tooj	Tsawg dua los yog sib npaug li 16	16>kom tsawg dua los yog sib npaug li 40	Tsawg dua los yog sib npaug 3	>3 Tsawg dua los yog sib npaug li 40	Tsawg dua los yog sib npaug li 40 mm	ntsuas kub
S235 JRH	1.0039	235	225	360-510	360-510	24	20 degree

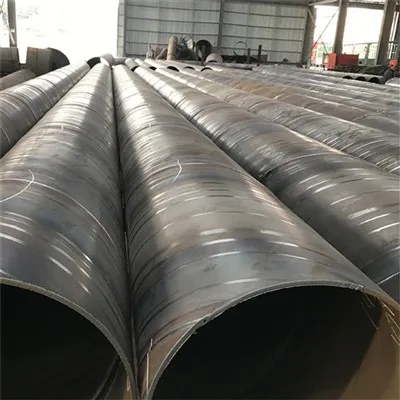

S235 JR Kauv Welded Steel Yeeb Nkab

ssaw steel pipe ssaw carbon pipe S235JR

Hais txog GNEE

GNEE Group yog lub tuam txhab muaj hnub nyoog kaum xyoo tshwj xeeb hauv kev txhim kho thiab tsim cov kav hlau kav, coiled steel kav, thiab cov chaw muag khoom ncaj qha ntawm cov kav dej sab hauv thiab sab nraud los tiv thaiv corrosion. Txij li thaum nws tsim, lub tuam txhab tau ua raws li kev lag luam lub tswv yim ntawm kev ncaj ncees, pragmatism thiab kev paub nrhiav, thiab tau coj los ntawm kev xav tshiab kev lag luam rau steel yeeb nkab khoom. Peb muab S235JR welded yeeb nkab, S355JR welded yeeb nkab, A252 welded yeeb nkab, thiab lwm yam. Yog tias koj xav tau cov yeeb nkab steel, thov muab cov khoom specifications koj xav tau thiab peb yuav hais koj sai li sai tau.
