Hlau Yeeb Nkab Hla

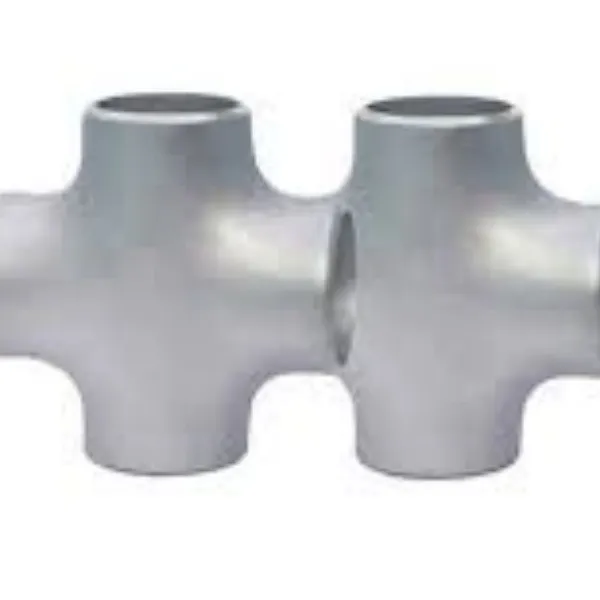

ASME B16.9 Steel Pipe Cross Fittings yog tsim thiab tsim raws li thoob ntiaj teb tus qauv ntawm ASME B16.9. Cov khoom siv feem ntau yog carbon steel thiab stainless hlau. Nws yuav muaj ib qho inlet thiab peb qhov hluav taws xob los yog peb lub inlets thiab ib lub qhov hluav taws xob.
Cov yeeb nkab steel cross dimension thiab specification yog tsim raws li tus qauv ntawm ANSI / ASME B16.9, nws muaj peev xwm sib npaug los yog redcuing. Nws muaj tib txoj haujlwm zoo li pob tw weld tee uas muab cov ceg rau kev sib txuas, tab sis siv tsawg dua vim tias tus nqi siab dua thiab siv tshuab.
Hlau Yeeb Nkab Sib npaug Hla Hlau Yeeb Nkab Txo Hla
Buttwelding Fittings yog siv rau hauv cov kav dej los hloov cov kev taw qhia lossis kev ua haujlwm ntawm kev tshaj tawm, kom cov ceg tawm, txo cov yeeb nkab loj lossis txuas cov cuab yeej pabcuam. Lawv yog availbale nyob rau hauv ntau yam xws li luj tshib, tee, cap, reducer, stub kawg thiab oelt, uas ua nyob rau hauv txias thiab kub sib sau raws li ASTM A403 thiab ASTM A234 specification.
ASTM A403 yog tus sawv cev tus qauv tshwj xeeb rau stainless hlau buttweld fittings, cov qib siv ntau yog SS304, SS316, SS321 thiab SS310S. Nws yog cov ntawv luv ntawm stainless acid-resistant steel, thiab resistant rau tsis muaj zog corrosive media xws li cua, chav, dej los yog lwm yam.
ASTM A234 WPB feem ntau siv qib hauv cov khoom siv carbon steel, thiab sib phim nrog ASTM A106B / API 5L B / A53B kav thiab ASTM A105 flanges hauv cov kav dej. Nws muaj cov khoom zoo nrog tus nqi qis.
Specification ntawm ASME B16.9 Hla Pipe Fittings
| Hom hom | Sib npaug thiab txo Hla Tee |
| Qhov Loj | 1/2" - 80" / DN15 - 2000 |
| Thickness Teem caij | SCH 10, SCH 40, SCH 80, SCH 160, XXS |
| Cov khoom siv carbon steel | ASTM A234 WPB / WPC, ASTM A420 WPL6, A860 WPHY 42 / 46 / 56 / 60 / 65 |
| Cov khoom siv hlau alloy | ASTM A234 WP11 / WP12 / WP 5 / WP9 / WP91 / WP92,15CrMoG, 12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-515CrMoG, 5Cr5MoV, 12Cr Cr9Mo, 10CrMo910, 12CrMo{29}} |
| Stainless hlau khoom | ASTM A403 WP304/304L/304H, 316/316L, 310S, 317, 347, 904L, A815 S32205, S31803, 32750, 32760 |
ASME B16.9 Hlau Yeeb Nkab Hla Fittings Drawing & Dimensions
| Nominal Loj | Sab nraud txoj kab uas hla ntawm Bevel | Center to End | ||
| DN | NPS | OD1 × OD2 | C | M |
| 15 | 1/2 | 21.3 | 25 | 25 |
| 20 | 3/4 | 26.7 | 29 | 29 |
| 25 | 1 | 33.4 | 38 | 38 |
| 32 | 11/4 | 42.2 | 48 | 48 |
| 40 | 11/2 | 48.3 | 57 | 57 |
| 50 | 2 | 60.3 | 64 | 64 |
| 65 | 21/2 | 73.0 | 76 | 76 |
| 80 | 3 | 88.9 | 86 | 86 |
| 90 | 31/2 | 101.6 | 95 | 95 |
| 100 | 4 | 114.3 | 105 | 105 |
| 125 | 5 | 141.3 | 124 | 124 |
| 150 | 6 | 168.3 | 143 | 143 |
| 200 | 8 | 219.1 | 178 | 178 |
| 250 | 10 | 273.0 | 216 | 216 |
| 300 | 12 | 323.8 | 254 | 254 |
| 350 | 14 | 355.6 | 279 | 279 |
| 400 | 16 | 406.4 | 305 | 305 |
| 450 | 18 | 547.0 | 343 | 343 |
| 500 | 20 | 508.0 | 381 | 381 |
| 550 | 22 | 559.0 | 419 | 419 |
| 600 | 24 | 610.0 | 432 | 432 |
| 650 | 26 | 660.0 | 495 | 495 |
| 700 | 28 | 711.0 | 521 | 521 |
| 750 | 30 | 762.0 | 559 | 559 |
| 800 | 32 | 813.0 | 597 | 597 |
| 850 | 34 | 864.0 | 635 | 635 |
| 900 | 36 | 914.0 | 673 | 673 |
| 950 | 38 | 965.0 | 711 | 711 |
| 1000 | 40 | 1016.0 | 749 | 749 |
| 1050 | 42 | 1067.0 | 762 | 711 |
| 1100 | 44 | 1118.0 | 813 | 762 |
| 1150 | 46 | 1168.0 | 851 | 800 |
| 1200 | 48 | 1219.0 | 889 | 838 |
| 1300 | 52 | 1321.0 | 965 | 914 |
| 1400 | 56 | 1422.0 | 1041 | 965 |
| 1500 | 60 | 1524.0 | 1118 | 1016 |
| 1600 | 64 | 1626.0 | 1194 | 1092 |
| 1700 | 68 | 1727.0 | 1270 | 1168 |
| 1800 | 72 | 1829.0 | 1320 | 1245 |
| 1900 | 76 | 1930.0 | 1422 | 1320 |
| 2000 | 80 | 2032.0 | 1499 | 1397 |
Sau ntawv
1) Dhau li ntawm cov qauv hais saum toj no, cov qauv ntawm GB / T 10752 SH 3408 SH 3409 HG / T 21635 HG / T 21631 SY / T 0510 DL / T 695 EN 10253 thiab lwm yam.
2) Rau txoj kab ncaj nraim nrog DN Ntau dua lossis sib npaug rau 650 (NPS 26) thiab txo cov hlaws nrog DN Ntau dua lossis sib npaug rau 350 (NPS 14, qhov hluav taws xob qhov ntau thiab tsawg tau pom zoo siv (uas txhais tau tias lwm qhov ntau thiab tsawg yuav raug siv. ).
3) Rau cov ntoo khaub lig nrog qhov ntau thiab tsawg tshaj li teev nyob rau hauv cov lus saum toj no, lawv yuav raug muab raws li qhov loj me tau pom zoo los ntawm cov neeg yuav khoom thiab cov chaw tsim khoom lossis raws li cov chaw tsim khoom loj.
