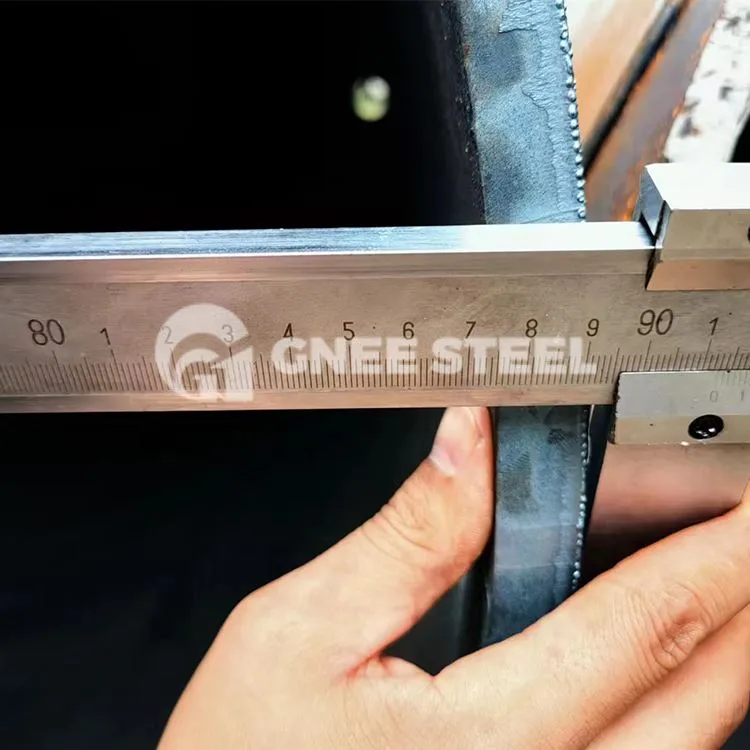

BS1387 ERW Steel Tube
BS1387 ERW Steel Tube
BS1387 ERW Steel Tube

BS1387 ERW Hlau Tube

BS1387 ERW welded yeeb nkab yog siab zaus kuj welded steel yeeb nkab. Qhov sib txawv ntawm cov yeeb nkab steel zoo tib yam, cov welded yog tsim los ntawm melting lub hauv paus khoom ntawm steel sawb lub cev, thiab nws cov neeg kho tshuab lub zog yog zoo dua li dav welded yeeb nkab. Nws yog tsuas yog siv nyob rau hauv qhov project dej, petrochemical kev lag luam, tshuaj lom neeg kev lag luam, hluav taws xob fais fab kev lag luam, ua liaj ua teb irrigation, kev tsim kho hauv nroog thiab lwm yam.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

BS1387 Welded Yeeb Nkab Supplier-GNEE

BS 1387 qib kav yog tus nqi qis qis carbon steel kav nrog siab tshaj 020% carbon thiab 120% manganese cov ntsiab lus, uas yooj yim rau kev tsim thiab zoo. Cov kav dej no tau tsim los rau BS specifications, thiab cov kav hlau me me tsis nyuaj li cov kav hlau carbon siab, txawm hais tias carburizing tuaj yeem ua rau lawv qhov tawv tawv.

Specification	Tawm Dia	LENGTH	WT
	21.3-273 hli)	5.8 – 12m	1. 0 - 12 mm
	Cov qauv	Teem caij	Hom
	Txuj: ASTM A53, BS1387, GB / T9711, GB / T3901	SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, Tag nrho cov sij hawm	Seamless / HFW / saw
	Kev sim	Xaus	Daim ntawv
	NDT test (x-ray, UT, RT,) Hydro static test, Impact Test, Mechanical & Chemical test	Plain End, Beveled End, Treaded	Round Pipes, Dub Pipes, Zinc Coated Pipes
	Ntim
	Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped

Khoom Loj Ntawm BS1387 LSAW Steel Yeeb Nkab

Chav kawm	Nominal Diameter (DN) hli	Kev xaiv ntawm thread Inch	Sab nraud txoj kab uas hla		Thickness hli	Loj ntawm lub raj dub
			Max mm	Min mm		Plain kawg kg / m	Screwed thiab socketed kg / m
Teeb	15	1/2	21.4	21	2	0.947	0.956
	20	3/4	26.9	26.4	2.3	1.38	1.39
	25	1	33.8	33.2	2.6	1.98	2
	32	1.25	42.5	41 .9	2.6	2.54	2.57
	40 50	1 1/2 2	48.4 60.2	47.8 59.60	2.9 2.9	3.23 4.08	3.27 4.15
	65	2.5	76	75.2	3.2	5.71	5.83
	80	3	88.7	87.9	3.2	6.72	6.89
	100	4	113.9	113	3.6	9.75	10
Nruab nrab	15	1/2	21.7	21.1	2.6	1.21	1.22
	20	3/4	27.2	26.6	2.6	1.56	1.57
	25	1	34.2	33.4	3.2	2.41	2.43
	32	1.25	42.9	42.1	3.2	3.1	3.13
	40	1.5	48.4	48	3.2	3.57	3.61
	50	2	60.8	59.8	3.6	5.03	5.1
	65	2.5	76.6	75.4	3.6	6.43	6.55
	80	3	89.5	88.1	4	8.37	8.54
	100	4	114.9	113.3	4.5	12.2	12.5
	125	5	140.6	138.7	5	16.6	17.1
	150	6	166.1	164.1	5	19.7	20.3
Hnyav	15	1/2	21.7	21.1	3.2	1.44	1.45
	20	3/4	27.2	26.6	3.2	1.87	1.88
	25	1	34.2	33.4	4	2.94	2.96
	32	1.25	42.9	42.1	4	3.8	3.83
	40	1.5	48.8	48	4	4.38	4.42
	50	2	60.8	59.8	4.5	6.19	6.26
	65	2.5	76.6	75.4	4.5	7.93	8.05
	80	3	89.5	88.1	5	10.3	10.5
	100	4	114.9	113.3	5.4	14.5	14.8
	125	5	140.6	138.7	5.4	17.9	18.4
	150	6	166.1	164.1	5.4	21.3	21.9
