API 5L X60 ERW Carbon Steel Yeeb Nkab

API 5L X60 welded yeeb nkab yog cov yeeb nkab uas muaj zog carbon steel uas ua tau raws li American Petroleum Institute (API) cov qauv thiab muaj zog ntau dua piv rau API 5L X56. Nws muaj qhov tsawg kawg nkaus tawm lub zog ntawm 415 MPa thiab lub zog tensile yam tsawg kawg nkaus ntawm 520 MPa, nrog rau qhov sib piv ntawm 0.93. API 5L X60 kuj welded yeeb nkab yog dav siv nyob rau hauv cov roj thiab roj kis tau tus mob pipelines, roj zoo casings, laum kav, laum dab tshos, thiab refining thiab tshuaj nroj tsuag.

API 5L X60 ERW Yeeb Nkab Specification

Khoom npe	API 5L X60 ERW Tube
Txoj kab uas hla	1 nti - 26 nti
Phab ntsa Thickness	SCH10, SCH 20, SCH 30, STD, SCH 40, SCH60 thiab lwm yam
Ntev	Random, ntev los ntawm 3m mus rau 18m
Daim ntawv thov	Kab yeeb nkab, kua yeeb nkab, yeeb nkab dej, qauv steel raj, piling tube,
Yeeb Nkab Txheej	Kev pleev xim dub, pleev xim rau cov kua roj vanish, cov roj tiv thaiv xeb, lossis lwm cov txheej txheem yuav tsum tau ua
Pob	Yas lub kaus mom ntawm ob qho kawg, Steel pob, lossis acc. rau cov neeg siv khoom thov
Kev tshuaj xyuas	ISO9001, SGS
Muaj peev xwm	10000 metric tons ib hlis
Lub sij hawm xa tuaj	30 hnub

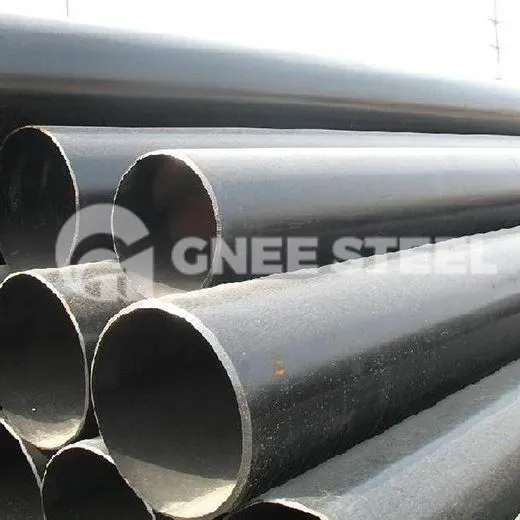

API 5L X60 ERW steel yeeb nkab











































Cov yam ntxwv cuam tshuam rau qhov zoo ntawm API 5L X60 Welded Pipe

Kev cuam tshuam ntawm vuam ceev ntawm vuam zoo

Nce vuam ceev: Thaum lub vuam ceev yog nce, qhov tsim ntawm oxide inclusions yuav txo tau, thiab tshav kub-cuam tshuam cheeb tsam yog shortened, uas yuav pab nyob rau hauv extruding oxide txheej los ntawm molten zawj.

Tsawg vuam ceev: Conversely, thaum lub vuam ceev yog tsawg heev, lub tshav kub-cuam tshuam cheeb tsam yuav wider, loj vuam burrs yog tsim, oxide txheej thickens, thiab weld zoo deteriorates.

Txoj Cai: Feem ntau, qhov siab dua qhov vuam ceev, qhov zoo dua qhov vuam zoo, vim nws tuaj yeem txo qhov tshwm sim ntawm vuam spatter. Txawm li cas los xij, rau kev tsim cov kav dej tuab, qhov vuam ceev yuav tsum raug tswj kom tsim nyog los ua kom lub sijhawm cua sov thiab ua kom cov vuam fusion txaus.

Kev cuam tshuam ntawm Steel Strip Edge Condition on Welding Quality

Cov xwm txheej thiab cov duab ntawm cov hlau strip npoo kuj tseem ceeb heev cuam tshuam rau qhov zoo ntawm kev siv vuam ntau zaus.

Cov ntug tsis sib xws los yog tsis xwm yeem: Yog hais tias cov npoo ntawm cov hlau sawb yuav tsum tau welded yog tsis sib npaug los yog tsis xwm yeem, vuam efficiency yuav txo tau zoo heev. Cov npoo tsis sib xws los yog burred tuaj yeem ua rau muaj kev sib cuag ntxov ntxov thiab arcing ntawm vuam nto, ua rau luv luv Circuit Court. Ntawm ib sab tes, qhov ceev tam sim no nyob rau hauv thawj ib nrab ntawm lub V-zoo li lub kaum sab xis nce thiab heats sai, uas yuav tsum tau rhuab thiab extruded ua ntej tsim cov weld seam, siv ntau lub zog; Ntawm qhov tod tes, qhov tam sim no qhov ceev hauv ib nrab thib ob txo qis, thiab cov khoom siv hauv paus tsis tuaj yeem ua kom sov rau vuam kub thaum lub sij hawm extrusion txheej txheem, ua rau txias vuam.

Tej yam tsis zoo:

Scimitar Khov: Qhov no tuaj yeem ua rau cov hlua hlau sib txawv los yog thim rov qab, ua rau lub vuam seam hloov, thiab hnyav dua, ua rau sib tshooj vuam thiab ua rau tsis tsim nyog.

Wavy Ntug: Qhov no tuaj yeem ua rau tawg thiab tawg tau yooj yim thaum vuam.

Edge Nicks: Lub jagged, tsis sib npaug npoo tshwm sim los ntawm dull slitting tshuab disc hniav ua rau lub zos "cov nqaij poob" nyob rau hauv lub steel sawb, ua rau nws yooj yim rau tawg los yog tawg thaum lub sij hawm vuam thiab cuam tshuam qhov zoo ntawm weld seam.

Yog li ntawd, cov npoo ntawm lub raj yuav tsum tau welded yuav tsum tiaj tus li sai tau, tuav ib tug I-zoo li tus weld kom paub meej tias qhov sib thooj nyhuv thiab kub ntawm lub puab thiab sab nrauv yog zoo ib yam, yog li txhim kho vuam zoo.
