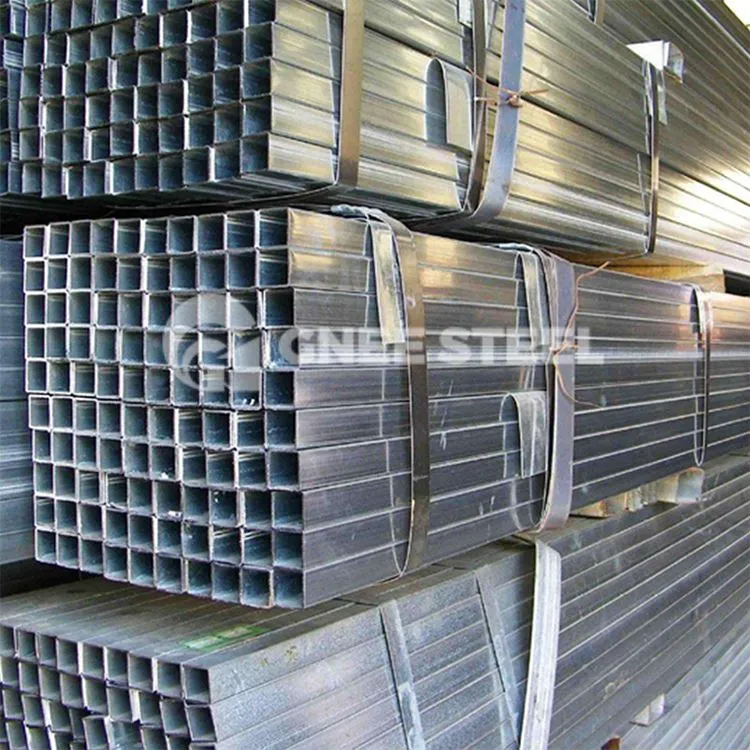

A500 GI Hollow yeeb nkab
A500 Gi Hollow Section Description
A500 yog ib qho kev qhia tshwj xeeb rau kev ua kom txias txias thiab tshwj xeeb zoo li tus ntoo khaub lig-section welded steel kav thiab seamless steel kav ntawm carbon steel rau kev siv cov qauv.
|
Lub npe |
Galvanized square steel tube zinc txheej square yeeb nkab txias dov galvanized square yeeb nkab nrog kev ruaj ntseg zoo |
|
Qib |
A500 Gr.A, A500 Gr.B, Q195, DX51D, SGCC |
|
Square GI Tube |
10x10x0.{3}}x600x40mm |
|
Rectangular GI Tube |
1 0x15x0. 3-600x800x40mm |
|
Ntev |
5.8m 6m 12m lossis kom tau raws li cov neeg siv khoom xav tau |
|
Ua siab ntev |
+-1% |
|
Siv Cheeb Tsam |
kev tsim kho, kev tsim kho |
|
Cov qauv |
ASTM A500, E10210, EN10219 |
|
Kev kho saum npoo |
kub dipped galvanized zinc coated |
|
Ntim |
Txheem exporting packing los yog raws li tus neeg yuav tsum tau muaj |
|
Daim ntawv pov thawj |
BV, ISO9001: 2008 thiab Mill Test Certificate |
|
Cov saum toj no yog cov khoom siv dav dav, rau hom tshwj xeeb, peb tuaj yeem ua tau raws li koj xav tau. |
|
Chemical Component (%) ntawm A500 ERW Pipe
| Qib | C | M | P | S | Cu |
| Gr.A | 0.26 | 1.35 | 0.035 | 0.035 | 0.20 |
| Gr.B | 0.30 | 1.40 | 0.045 | 0.045 | 0.18 |
| Gr.C | 0.23 | 1.35 | 0.035 | 0.035 | 0.20 |
| Gr.D | 0.27 | 1.40 | 0.045 | 0.045 | 0.18 |
Mechanical Properties Min (MPa) ntawm A500 Structural Pipe
| Qib | Tensile zog | Yield zog | Elongation |
| Gr.A | 310 | 230 | 25 |
| Gr.B | 400 | 290 | 23 |
| Gr.C | 425 | 315 | 21 |
| Gr.D | 400 | 250 | 23 |
GNEE Supply A500 Square Thiab Rectangular Steel Pipe Size Daim Ntawv Qhia
| Square Hollow Tshooj | Rectangular Hollow Section | Thickness |
| 20*20 25*25 30*30 | 20*40 30*40 | 1.2-3.0 |
| 40*40 50*50 | 30*50 25*50 30*60 40*60 | 1.2-4.75 |
| 60*60 | 50*70 40*80 | 1.2-5.75 |
| 70*70 80*80 75*75 90*90 100*100 | 60*80 50*80 100*40 120*80 | 1.5-5.75 |
| 120*120 140*140 150*150 | 160*80 100*150 140*80 100*180 200*100 | 2.5-10.0 |
| 160*160 180*180 200*200 | 200*150 250*150 | 3.5-12.0 |
| 250*250 300*300 400*200 350*350 350*300 | 250*200 300*200 350*200 350*250 450*250 400*300 500*200 | 4.5-15.75 |
| 400*400 280*280 450*300 450*200 | 400*350 400*250 500*250 500*300 400*600 | 5.0-20.0 |
A500 Steel Tubing
Hais txog GNEE
GNEE Group's ASTM A500 carbon steel kav yuav tsum tau ua ntau yam kev ntsuam xyuas, xws li pem hauv ntej-sab ntawv pov thawj cov ntaub ntawv pov thawj kev kuaj, mechanical testing, tshuaj ntsuam xyuas, flatness testing, eruption testing, intergranular corrosion testing, Rockwell hardness testing, sab nraud tshuaj xyuas, thiab lwm yam. paub zoo ASME SA500 steel yeeb nkab nyob rau hauv Suav teb, peb tuaj yeem muab koj qhov ntau thiab tsawg, duab, specifications, pej xeem thiab thoob ntiaj teb cov qauv, thiab lwm yam. Koj tuaj yeem tiv tauj peb txhua lub sijhawm.
Cim npe nrov: A500 GI Hollow Yeeb Nkab, Tuam Tshoj A500 GI Hollow Pipes manufacturers, lwm tus neeg
