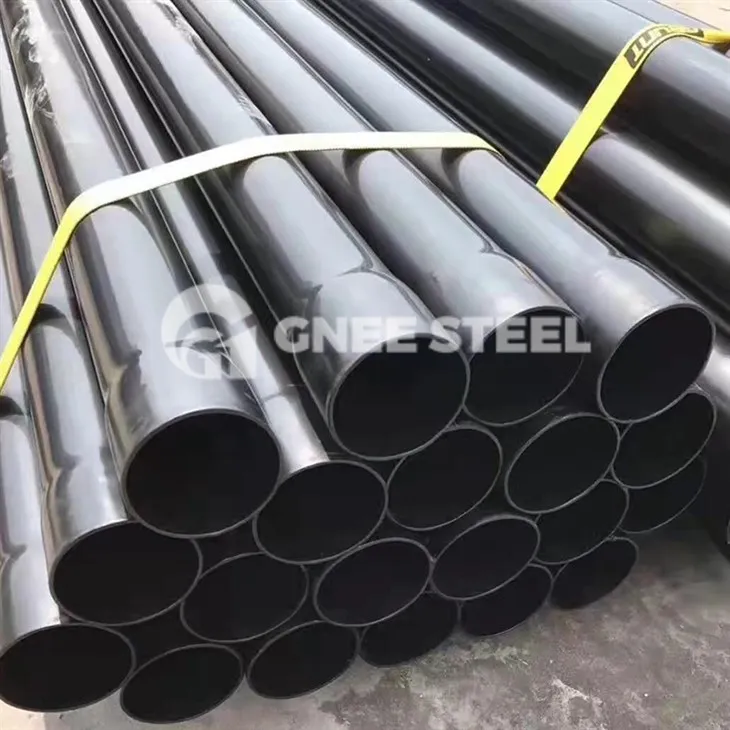

DIN30670 3PE Dub Coated Carbon Steel Seamless Steel Yeeb Nkab
3PE Txheej Yeeb Nkab Supplier-GNEE
Triple PE anti-corrosion txheej ua ke nrog lub siab impermeability thiab siab mechanical zog ntawm epoxy resin thiab polyethylene cov ntaub ntawv. Txog tam sim no, nws tau lees paub thoob ntiaj teb tias yog qhov zoo tshaj plaws thiab ua haujlwm zoo tshaj plaws ntawm cov kav dej los tiv thaiv corrosion txheej, thiab tau siv ntau yam haujlwm.
|
KHOOM NPE |
3PE dub txheej raws li DIN30670 tus qauv carbon steel seamless yeeb nkab |
||
|
KHOOM |
Carbon Steel |
||
|
Xim |
Cov kav dej liab qab, Dub / Liab / Varnish kav, lossis Kub Dip Galvanzied kav, 3PE raws li DIN30670 |
||
|
STANDARD |
ASTM A106 Gr.B; ASTM A53 Gr.A thiab Gr.B; API 5L Gr.A thiab Gr.B; A179 thiab A192 |
||
|
QIB |
20#, 10#, 45#, 16Mn, GR.B, X42, X52 |
||
|
SIZE |
OD: 1/4 nti ---32 nti WT: TSW 20, STD, SCH40, SCH80, SCH120, SCH160 Ntev: 5.8M; 6M; 11.8M, 12M lossis raws li cov neeg siv khoom xav tau |
||
|
APPLICATION
|
tsawg thiab nruab nrab siab boiler, siab siab boiler, nkoj-tsev, ua kua survice, roj av cracking, tshuaj chiv khoom, kos duab-roj-cov cuab yeej thiab cov hom phiaj. |
||
|
CERTIFICATE |
API 5L -0655; ISO9001 |
||

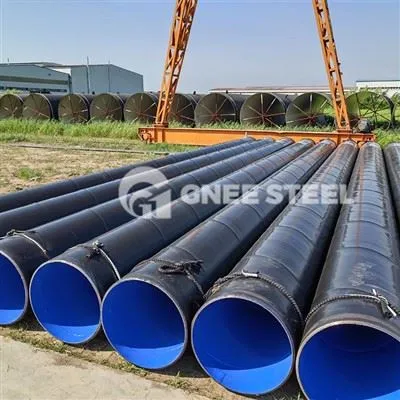

DIN30670 Txheej Yeeb Nkab Loj Table
|
Nominal Diameter Range |
Sab nraud Diameter Rang (mm) |
Txheej hom |
Txheej Txheej |
Txheej Thickness |
|
DN100-600 |
114.3~609.6 |
3 PEB: |
Sab hauv txheej: Epoxy (ntsuab) |
2. 0 ~ 4.5 hli |
|
Mid Layer: Adhesive (dawb) |
||||
|
Sab nrauv txheej: Polyethylene (Dub) |
||||
|
2 PEB: |
Sab hauv txheej: Adhesive |
2. 0 ~ 4.5 hli |
||
|
Sab nrauv txheej: Polythene |
||||
|
DN80-600 |
88.9~609.6 |
FBE: Epoxy |
Epoxy |
200-400 hli |
|
2 FBE: |
Sab hauv txheej: Epoxy (ntsuab) |
400-800 hli |
||
|
Sab nrauv txheej: Intensity Epoxy (Sage Green) |
||||
|
DN100-600 |
114.3~609.6 |
3 PIB: Peb Txheej Polypropylene |
Sab hauv txheej: Epoxy (Green |
2.5 ~ 3 hli |
|
Mid Layer: Adhesive (dawb) |
||||
|
Sab nrauv txheej: Polypropylene (dawb) |
Txheej Steel Pipe Test
| CORROSION RESISTANCE TEST | |||||||
| Corrosion resistance test | Kev sim | Kev daws | Benchmark kev ntxhov siab |
Lub sijhawm kuaj (hou) |
Cov txiaj ntsig kuaj | ||
| SSC xeem | NACE TM 0177-2005 |
Solution A | SMYSx 72% | 720 | Tsis so | ||
| HIC xeem | NACE TM 0284-2003 |
Solution A | - | 96 | CSR Tsawg dua lossis sib npaug rau 2.0% Tsim nyog CTR Tsawg dua lossis sib npaug rau 5.0% Tsim nyog CLR Tsawg dua lossis sib npaug rau 15.0% Tsim nyog |
||
3PE Coated Steel Tube
