AWWA C200 Kauv Steel Pipe
AWWA C200 SSAW Tube Supplier-GNEE
Kauv steel yeeb nkab yog ib tug kauv seam steel yeeb nkab welded los ntawm tsis siv neeg ob-xaim ob-sided submerged arc vuam txheej txheem siv sawb steel coil phaj raws li raw khoom, qhov kub thiab txias extrusion molding. Lub kauv steel yeeb nkab pub lub sawb mus rau hauv cov yeeb nkab welded. Tom qab tau dov los ntawm ntau lub chais, lub sawb yog maj mam dov los ua ib lub voj voos kheej kheej nrog qhov qhib qhov sib txawv. Kho qhov txo tus nqi ntawm cov menyuam extrusion los tswj qhov sib txawv ntawm qhov sib txawv ntawm 1 ~ 3mm, thiab ua rau ob qho kawg ntawm cov vuam sib koom ua ke.
Standard: AWWA C200, AWWA C203, AWWA C205, AWWA C208, AWWA C210, AWWA C213, thiab lwm yam.
Daim ntawv pov thawj EN10217, EN10219,
Sab nraud txoj kab uas hla: 219.1 hli -3048 hli
Phab ntsa thickness: 5.0mm-25.4mm
Ntev mus txog 70 meters
Qib hlau
American Petroleum Institute 5L: Qib A, Qib B, X42, X46, X56, X60, X65, X70
American ASTM A252 Qib 1, Qib 2, Qib 3
ASTM A53 Qib A, Qib B, Qib C, Qib D
BS 4360: Qib 43, Qib 50
EN: S275, S275jr, S355jrh, S355j2h

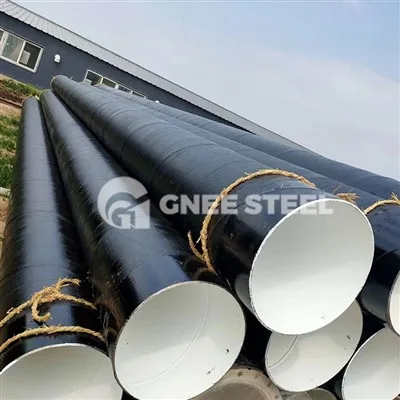

Kev kho deg: sintered epoxy txheej, thee tar epoxy txheej, 3PE txheej, faded txheej, asphalt txheej, roj dub txheej, tuaj yeem muab raws li cov neeg siv khoom xav tau
| SPECIFICATION A WWA C 200 | |||
| TSIS MUAJ MECHANICAL PROPERTIES | |||
| STEEL Qib | Tensile zog, min Ksi (Mpa) |
Flow limit, min Ksi (Mpa) | Stretch los ntawm 2 ntiv tes (50 hli)% min |
|
ASTM A-570 / A-570 M gr 30 |
49 (340) | 30 (205) | 25 (6 * 2.5 hli) |
|
ASTM A-570 / A-570 M gr 33 |
52 (360) | 33 (230) | 23 (6 * 2.5 hli) |
|
ASTM A-570 / A-570 M gr 36 |
53 (365) | 36 (250) | 22 (6 * 2.5 hli) |
|
ASTM A-570 / A-570 M gr 40 |
55 (380) | 40 (275) | 21 (6 * 2.5 hli) |
|
ASTM A-570 / A-570 M gr 45 |
60 (415) | 45 (310) | 19 (6 * 2.5 hli) |
|
ASTM A-570 / A-570 M gr 50 |
65 (450) | 50 (345) | 17 (6 * 2.5 hli) |
|
ASTM A-570 / A-570 M gr 55 |
70 (480) | 55 (380) | 15 (6 * 2.5 hli) |
|
ASTM A{0}} / A-36 M |
58-80 (400-550) | 36 (250) | 23 |
|
ASTM A-283 / A-283 M gr C |
55-75 (380-515) | 30 (205) | 25 |
|
ASTM A-283 / A-283 M gr D |
60-80 (415-550) | 33 (230) | 23 |
- Qhov siab tshaj plaws ntawm kauv welded steel yeeb nkab yog 144 in. (3600 mm) ib AWWA C200, ASTM A139 thiab ASTM A252
- Cov yeeb nkab phab ntsa thickness mus txog 1 nti
- Tso cai tawm lub zog mus txog 70, 000 psi
- Fittings thiab cov qauv los txhawb kev sib koom ua ke tsis muaj kev txwv lossis lub cev teeb tsa
- Field welding thiab roj hmab lev sib txuas
- Butt weld configurations thiab tshuab beveled xaus muaj
- AWWA C200 thiab ASTM A139 muaj nyob rau hauv kev sib koom ua ke ntev txog 55' (nominal); ASTM A252 muaj nyob rau hauv kev sib koom ua ke ntev txog 80'
- Sab hauv - dej
Cement mortar per AWWA C205
Epoxy cob per AWWA C210
Polyurethane ua raws li AWWA C222
- Hauv ob sab phlu - Kev pabcuam kav dej
Ceramaline® Sewer Lining
Polyurethane per AWWA C222
- Txheej - sab nrauv
Epoxy resin (raws li AWWA C210
Polyurethane ua raws li AWWA C222
Daim kab xev wrapping system rau AWWA C214 tus qauv
SSAW AWWA C200 Pipe
