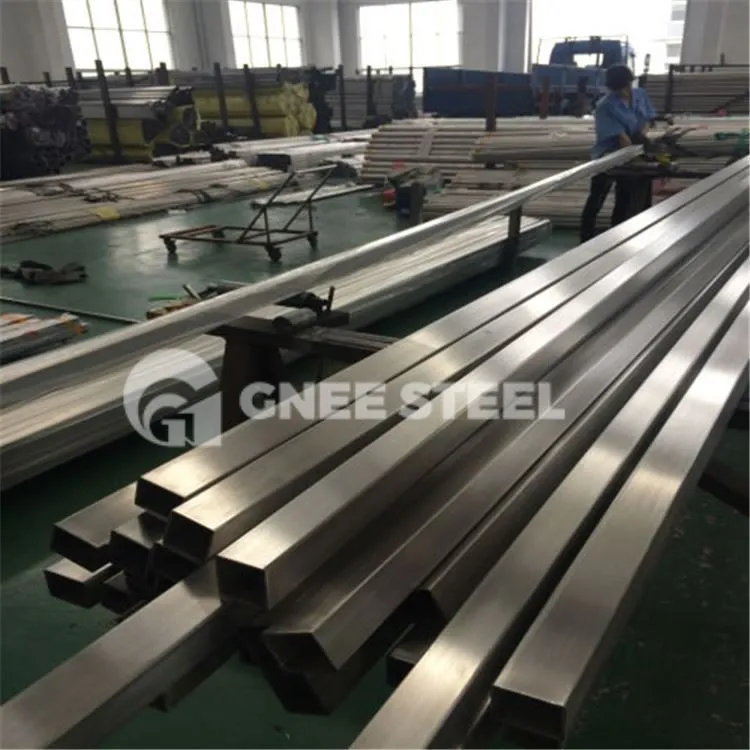

Square Stainless Hlau Yeeb Nkab Rau Mechanical

Square Stainless Steel Pipe For Mechanical
Square Stainless Steel Pipe For Mechanical
Square Stainless Steel Pipe For Mechanical

Square Stainless Hlau Yeeb Nkab Rau Mechanical

Stainless hlau square thiab plaub lub raj feem ntau yog tsim los ntawm kev ntim khoom, flattening, curling, thiab vuam cov strips rau hauv cov raj puag ncig, thiab tom qab ntawd dov cov raj puag ncig rau hauv cov raj square thiab txiav lawv mus rau qhov ntev.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Square yeeb nkab yog ib lub npe rau cov kav dej square thiab cov kav dej plaub, uas yog, cov kav hlau steel nrog qhov sib npaug thiab tsis sib npaug. Nws yog ua los ntawm sawb steel dov los ntawm cov txheej txheem kho.

Cov ntsiab lus (cov yeeb nkab hom): Stainless Hlau Yeeb Nkab, Stainless Hlau Tube, Stainless Hlau Tubing

Qhov Loj: Sab Nraud Sab Nraud: 1 1 / 8 '' ~ 36 '' Phab Ntsa Thickness: SCH 5, SCH 10S, SCH 40S, SCH 80S

Txuj: ASTM A240, ASTM A269, ASTM A312, ASTM A358, ASTM A778

Hlau Qib: 304, 304 / L, 304H, 310 / S, 310H, 316, 316L, 321, 321H

Nto: Annealed, Pickling, Polished

Tus me nyuam: Hauv 30 hnub thiab nyob ntawm koj qhov kev txiav txim kom muaj nuj nqis

Kev Them Nyiaj: TT, LC, OA, D / P

Packing: Cov ntawv ntim dej tsis muaj dej, ntim rau hauv Ntoo Cabins

Siv: Hauv Kev Lag Luam Tshuaj, thee, Roj Field Qhib Tshuab, Cov Khoom Siv Hluav Taws Xob Hluav Taws Xob

Stainless hlau Mechanical Properties

Qib	Tensile zog min. Ksi [MPa]	Yield zog min. Ksi [MPa]	Elongation hauv 2in lossis 50mm ntev% (min)	Hardness (Max) ASTM E18 Brinell	Hardness (Max) ASTM E18 Rockwell
201	95 [655]	38 [260]	35	219 HWB	95 PAB
304	75 [515]	30 [205]	35	192 HWB	90 PAB
304L	70 [485]	25 [170]	35	192 HWB	90 PAB
304H	75 [515]	30 [205]	35	192 HWB	90 PAB
304N	80 [550]	35 [240]	35	192 HWB	90 PAB
309S	75 [515]	30 [205]	35	192 HWB	90 PAB
309H	75 [515]	30 [205]	35	192 HWB	90 PAB
310S	75 [515]	30 [205]	35	192 HWB	90 PAB
310H	75 [515]	30 [205]	35	192 HWB	90 PAB
316	75 [515]	30 [205]	35	192 HWB	90 PAB
316L	70 [485]	25 [170]	35	192 HWB	90 PAB
316H	75 [515]	30 [205]	35	192 HWB	90 PAB
316 Ti	75 [515]	30 [205]	35	192 HWB	90 PAB
317	75 [515]	30 [205]	34	192 HWB	90 PAB
317L	75 [515]	30 [205]	35	192 HWB	90 PAB
321	75 [515]	30 [205]	35	192 HWB	90 PAB
321H	75 [515]	30 [205]	35	192 HWB	90 PAB
347	75 [515]	30 [205]	35	192 HWB	90 PAB
TP 347 H	75 [515]	30 [205]	35	192 HWB	90 PAB
N08904	71 [490]	31 [215]	35	192 HWB	90 PAB
N08020	80 [550]	35 [240]	30	217 HWB	95 PAB
800 N08800 Txias ua hauj lwm	75 [515]	30 [205]	30	192 HWB	90 PAB
800H N08810	65 [450]	25 [170]	30	192 HWB	90 PAB
800 HT N08811	65 [450]	25 [170]	30	192 HWB	90 PAB
N10276	100 [690]	41 [283]	40
N06022	100 [690]	45 [310]	45
S31803	90 [620]	65 [450]	25	290 HWB	30 HRC
S31803	90 [620]	65 [450]	25	290 HWB	30 HRC
S32101	101 [700] Phab ntsa Tsawg dua lossis sib npaug rau 0.187 hauv. [5.00 mm]	77 [530] Phab ntsa Tsawg dua lossis sib npaug rau 0.187 hauv. [5.00 mm]	30	290 HWB	30 HRC
S32205	95 [655]	70 [485]	25	290 HWB	30 HRC
S32550	110 [760]	80 [550]	15	297 HWB	31 HRC
S32304	100 [690] OD 1 in. [25 mm] thiab hauv qab 87 [600] OD tshaj 1 nti [25 mm]	65 [450] OD 1 in. [25 mm] thiab hauv qab 58 [400] OD tshaj 1 nti [25 mm]	25 25	… 290 HWB	… 30 HRC
S32750	116 [800]	80 [550]	15	300 HWB	32 HRC
S32760	109 [750]	80 [550]	25	300 HWB	…

Square Stainless Hlau Yeeb Nkab

square pipe

Cim npe nrov: Tuam Tshoj square stainless hlau yeeb nkab rau mechanical, Tuam Tshoj square stainless hlau yeeb nkab rau mechanical manufacturers, lwm tus neeg
