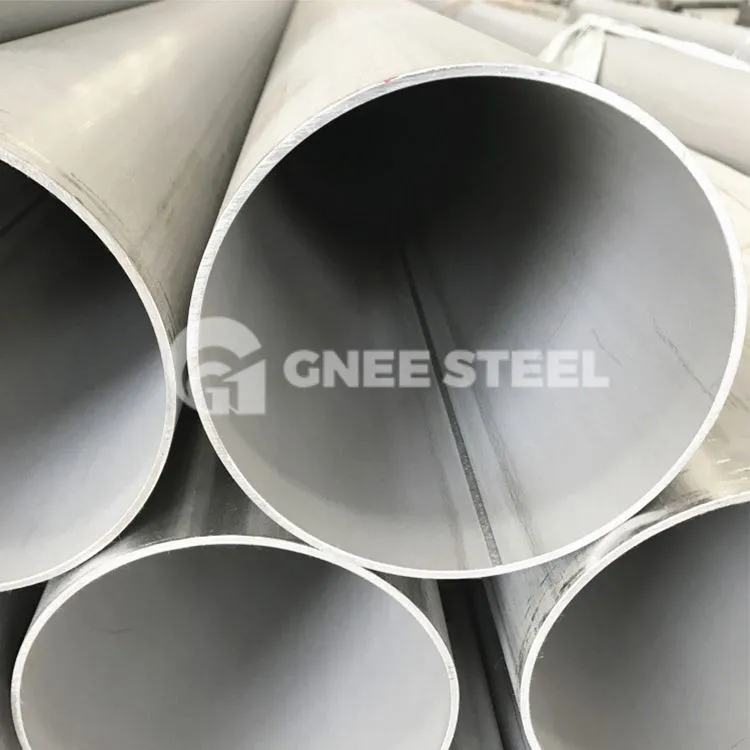

JIS G3468 Stainless Hlau Welded Tube

GNEE Group yog cov chaw tsim khoom tshwj xeeb ntawm JIS G3468 loj txoj kab uas hla stainless hlau welded kav. Peb JIS G3468 stainless hlau kav yog tsim rau corrosive, siab kub, thiab kub tsis tshua muaj ib puag ncig. Sab nraud kab ntawm JIS G3468 steel kav uas tsim los ntawm GNEE Group yog los ntawm 165 mus rau 1016 millimeters, thiab peb kuj tuaj yeem kho cov kav hlau steel rau lwm qhov tshwj xeeb raws li cov neeg siv khoom xav tau.Tiv tauj pebyog xav paub ntxiv.

JIS G3468 Loj Diameter Welded Yeeb Nkab Specification

Txuj	JIS G3468
Khoom siv	SUS304/304L, SUS309S, SUS310S, SUS316/316L, SUS317L, SUS321, SUS347
Nominal Dia	NB 6" to 80" .THK:SCH5S,10S,20S,40
Ntev	20 m (Max) los yog raws li koj xav tau
Txheej txheem	EFW (argon arc vuam / TIG, plasma arc vuam / PAW, thiab submerged arc vuam / SAW)
Ua kom tiav	Annealed & pickled, polished
Xaus	Beveled los yog kawg kawg, square txiav, burr dawb, Yas Cap ntawm Ob kawg
Ntim	Npuag packing / nras packing nrog woven hnab / ntoo los yog steel thav duab crate packing / yas cap tiv thaiv ntawm ob sab ntawm cov hlab thiab tsim nyog tiv thaiv rau hiav txwv-worthly xa los yog raws li thov.

JIS G3468 Yeeb Nkab Chemical Composition

Hom cim	C	Si	Mn	P	S	Ni	Cr	Mo	Cu
SUS 304 TPD	0.08 los yog tsawg dua	1.00 los yog tsawg dua	2.00 los yog tsawg dua	0.045 los yog tsawg dua	0.030 los yog tsawg dua	8.00-10.50	18.00-20.00	―A)	―A)
SUS315J1TPD		0.5-2.50				8.50-11.50	17.00-20.50	0.50-1.50	0.50-3.50
SUS315J2TPD		2.50-4.00				11.00-14.00	17.00-20.50	0.50-1.50	0.50-3.50
SUS 316 TPD		1.00 los yog tsawg dua				10.00-14.00	16.00-18.00	2.00-3.00	―A)

JIS G3468 Loj Diameter Stainless Hlau Pipe Dimensions:

Nominal Txoj kab uas hla A	Nominal Txoj kab uas hla B	Sab nraum Txoj kab uas hla (mm)	SCH -5S Nominal Phab ntsa thickness (mm)	SCH -10S Nominal Phab ntsa thickness (mm)	SCH -20S Nominal Phab ntsa thickness (mm)	SCH -40 Nominal Phab ntsa thickness (mm)
150	6	165.2	2.8	3.4	5.0	7.1
200	8	216.3	2.8	4.0	6.5	8.2
250	10	267.4	3.4	4.0	6.5	9.3
300	12	318.5	4.0	4.5	6.5	10.3
350	14	355.6	4.0	5.0	8.0	11.1
400	16	406.4	4.5	5.0	8.0	12.7
450	18	457.2	4.5	5.0	8.0	14.3
500	20	508.0	5.0	5.5	9.5	15.1
550	22	558.8	5.0	5.5	9.5	15.9
600	24	609.6	5.5	6.5	9.5	17.5
650	26	660.4	5.5	8.0	12.7	-
700	28	711.2	5.5	8.0	12.7	-
750	30	762.0	6.5	8.0	12.7	-
800	32	812.8	-	8.0	12.7	-
850	34	863.6	-	8.0	12.7	-
900	36	914.4	-	8.0	12.7	-
1000	40	1016.0	-	9.5	14.3	-
1050 | 1650	42 | 66	1066.8 | 1676.4	Thaum qhov ntev uas tsis yog cov uas tau muab rau hauv cov lus hais txog kev hlub yog xav tau, lub plhaub qhov ntev yuav raug txiav txim siab raws li kev pom zoo ntawm tus neeg yuav khoom thiab cov chaw tsim khoom.

JIS G3468 Welded Loj-inch Stainless Hlau Kav











































Vim li cas thiaj xaiv GNEE JIS G3468 Stainless Hlau Welded Tube

• GNEE Group muaj 16 xyoo dhau los ntawm kev tsim thiab xa tawm JIS G3468 stainless hlau kav.
• GNEE Group tau txais daim ntawv pov thawj ISO thiab SGS.
• Peb muaj kev pabcuam customization thiab.
• GNEE Group ua haujlwm 20 steel yeeb nkab ntau lawm kab, suav nrog 5 carbon steel seamless yeeb nkab kab, 3 alloy seamless yeeb nkab kab, 3 kauv welded yeeb nkab kab, thiab 5 stainless hlau yeeb nkab kab, thiab lwm yam.
• Peb muab cov ntaub ntawv soj ntsuam zoo, suav nrog cov khoom siv tshuaj lom neeg, kuaj cov cuab yeej cuab yeej, kuaj hardness, eddy tam sim no kuaj, thiab tsis-destructive testing, thiab lwm yam.
• Peb muaj 3000 tons ntawm cov kav hlau hauv Tshuag, muaj rau cov khoom xa tuaj hauv 3 hnub.
