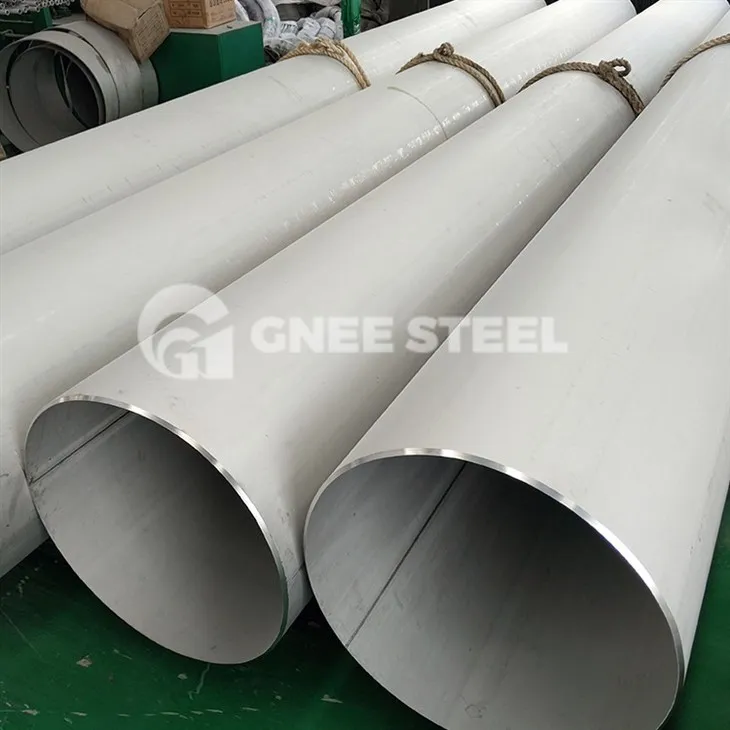

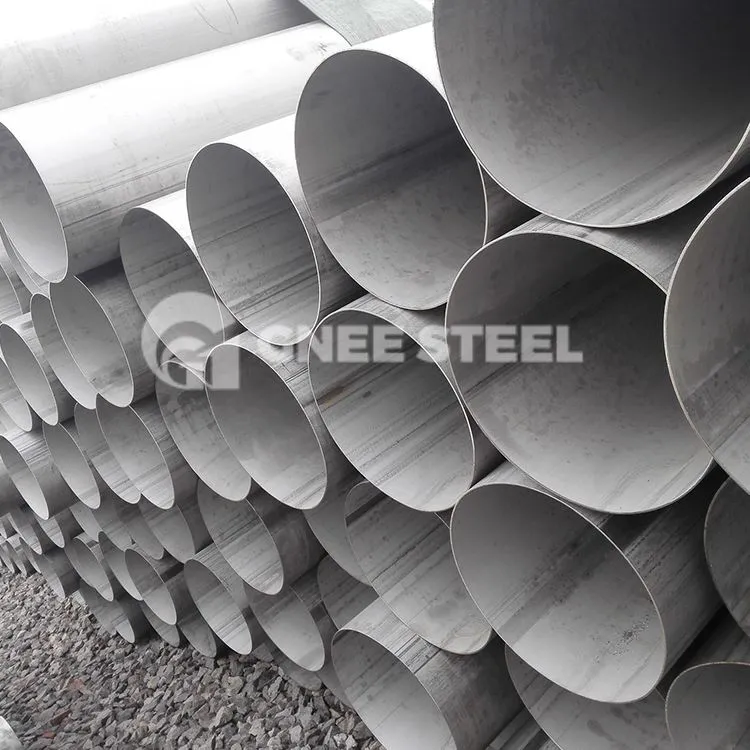

A312 Welded Stainless Steel Pipe
A312 Welded Stainless Steel Pipe
A312 Welded Stainless Steel Pipe

A312 Welded Stainless hlau yeeb nkab

Cov yeeb nkab hom: A312 Stainless hlau yeeb nkab
Txoj kab uas hla: Los ntawm 1/8 nti mus rau 30 nti.
Phab ntsa thickness: SCH 10S, 40S, 80S
Ntev: 20ft, 40ft, Ib Leeg Random Length, Ob Chav Random Length thiab Customized

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

A312 Welded Austenitic Stainless Steel Pipes Nqe lus piav qhia

A312 stainless hlau yeeb nkab yog austenitic seamless thiab ncaj seam welded yeeb nkab haum rau high-temperature thiab corrosive ib puag ncig. Nws yog tsim los siv ob qho tib si kub thiab txias ua haujlwm txheej txheem.

GNEE Group yog lub chaw tsim khoom muaj koob npe thiab ntseeg tau thiab cov khoom siv hlau kav, muab ntau yam A312 stainless hlau kav, xws li A312 TP304 austenitic welded yeeb nkab, A312 TP316 stainless hlau welded yeeb nkab, A312 TP309H stainless hlau welded yeeb nkab, thiab A312 ncaj TP30. seam welded yeeb nkab. Kev ntsuas cuam tshuam lossis kev ntsuas kev ua tau zoo tuaj yeem ua raws li koj xav tau. Raws li tus kws tshaj lij A312 ncaj-seam welded yeeb nkab chaw tsim khoom, GNEE Group tuaj yeem muab cov nqi sib tw ntau dua thiab cov kev pabcuam tshaj lij. Yog tias koj xav paub ntau ntxiv, thov koj xav tiv tauj peb txhua lub sijhawm.

A312 Welded Pipes Specification

Txuj	A312
Qib	TP304, TP304L, TP304H, TP304LN, TP309S, TP309J, TP310S, TP310H, TP316, TP316L, TP316H, TP316TI, TP317, TP3421L, TPH
Qhov Loj	2" - 48"
Teem caij	5S, 10S, STD, XH, 40, 80, 100, 120, 160, XXH
Cov nqe lus them nqi	T/T, L/C
MOQ	3 Tons

Tshuaj muaj pes tsawg leeg ntawm A312 LSAW Pipe

Qib	Cov pa roj carbon	Silicon	Manganese	Chromium	Nickel	Molybdenum	Sulfur	Phosphorous
TIAB SA 304	0,08	1,0	2	18.0 – 20.0	8.0 – 11.0	–	0,03	0,045
TP 304 L	0,035	1,0	2	18.0 – 20.0	8.0 – 13.0	–	0,03	0,045
TIAB SA 316	0,08	1,0	2	16.0 – 18.0	10.0 – 14.0	2.00 – 3.00	0,03	0,045
TP 316 L	0,035	1,0	2	16.0 – 18.0	10.0 – 15.0	2.00 – 3.00	0,03	0,045
TIAB SA 321	0,08	1,0	2	17.0 – 19.0	9.0 – 12.0	–	0,03	0,045

Mechanical Properties ntawm A312 Stainless hlau yeeb nkab

Qib Steel	Kev kho cua sov	Kub Min. º F (º C)	Tensile zog Ksi (MPa), Min.	Yield zog Ksi (MPa), Min.	Elongation %, Min
TIAB SA 304	Kev daws	1900 (1040)	75(515)	30(205)	35
TP 304 L	Kev daws	1900 (1040)	70(485)	25(170)	35
TP 304 H	Kev daws	1900 (1040)	75(515)	30(205)	35
TP 310 S	Kev daws	1900 (1040)	75(515)	30(205)	35
TIAB SA 316	Kev daws	1900(1040)	75(515)	30(205)	35
TP 316 L	Kev daws	1900(1040)	70(485)	25(170)	35
TP 316 H	Kev daws	1900(1040)	75(515)	30(205)	35
TP 316 Ti	Kev daws	1900(1040)	75(515)	30(205)	35
TIAB SA 321	Kev daws	1900(1040)	75(515)	30(205)	35
TP 321 H	Kev daws	Txias: 2000 (1100) Kub: 1925 (1050)	75(515)	30(205)	35
TIAB SA 347	Kev daws	1900(1040)	75(515)	30(205)	35
TP 347 H	Kev daws	Txias: 2000 (1100) Kub: 1925 (1050)	75(515)	30(205)

GNEE A312 Stainless Hlau Welded Yeeb Nkab Kev muag khoom

A312 Stainless Steel Pipe A312 austenitic stainless steels pipe

GNEE A312 Tube Case

Project Cases

GNEE Group tau tsim kev sib raug zoo nrog ntau dua 150 cov neeg siv khoom thoob ntiaj teb.

Chemical Plant: High-Temperature Industrial Application

Thaib teb

Loj: 24 "

Phab ntsa Thickness: SCH 40S

Ntev: 40ft

350 Tons

Lub Tuam Txhab Roj thiab Roj:Roj thiab Gas Pipeline

Kazakhstan

Loj: 26 "

Phab ntsa Thickness: SCH 80S

Ntev: 30ft

500 Tons

Food Corporation:Khoom noj khoom haus kev cog qoob loo

Kaus Lim Kauslim (Kauslim Teb Kauslim)

Loj: 28 "

Phab ntsa Thickness: SCH 40S

Ntev: 20ft

550 Tons

Lub tuam txhab fais fab:Fais fab nroj tsuag Maintenance

Thaib teb

Loj: 32 "

Phab ntsa Thickness: SCH 40S

Ntev: 40ft

650 ton

GNEE A312 Pipe Test

A312 SS pipe inspection

GNEE Yeeb Nkab Ntim thiab Shipping

pipe packaging and shipping

FAQ

Q: Koj puas txais customization ntawm cov kav dej?

A: Yog, tab sis cov neeg siv khoom yuav tsum tau muab cov ncauj lus kom ntxaws xws li qhov loj, qhov ntau, cov khoom siv, thiab lwm yam ntawm cov kav dej customized.

Q: Kuv yuav ua li cas yog tias cov kav dej uas kuv tau txais tsis raug?

A: Peb tuaj yeem tsim cov qauv rau koj ua ntej kev txiav txim xa tuaj. Yog tias cov yeeb nkab uas koj tau txais tsis phim cov qauv, peb yuav them rov qab rau koj lossis koj tuaj yeem xaiv rov xa cov kav dej.

Q: Koj puas yog cov chaw tsim khoom lossis cov tub luam?

A: GNEE Group yog ib lub tuam txhab ua lag luam nrog 16 xyoo kev paub hauv kev tsim thiab muab cov khoom siv hlau. Peb muaj 20 steel yeeb nkab ntau lawm kab thiab 5 yeeb nkab haum cov kab ntau lawm. tuaj yeem muab kev pabcuam rau koj. Koj tuaj yeem tuaj xyuas peb lub Hoobkas thiab tuam txhab.

Q: Koj puas tuaj yeem muab cov qauv? Puas muaj nqi?

A: Peb tuaj yeem muab cov qauv coj mus kuaj rau koj, tab sis cov nqi thauj khoom yuav tsum tau them los ntawm cov neeg siv khoom.

Q: Lub sijhawm xa khoom ntawm cov kav dej yog dab tsi?

A: Lub sij hawm xa tuaj: 3-7 hnub tom qab tau txais cov nyiaj them ua ntej.

Customized lub sij hawm xa tuaj: 20-30 hnub tom qab kev txiav txim pom zoo.

Q: Koj lub sijhawm ua lag luam yog dab tsi?

A: Peb cov nqe lus ntawm kev lag luam yog FOB, CIF, CFR, DDP, EXW.
