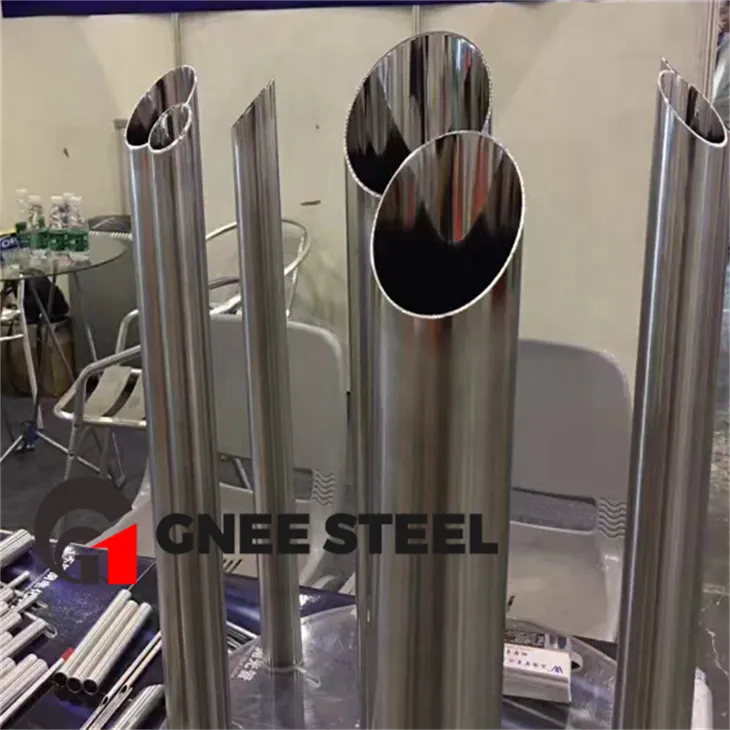

A268 TP429 Stainless Hlau Round Yeeb Nkab
Piv rau 430 stainless hlau raj, 429 round yeeb nkab muaj kev tiv thaiv corrosion zoo dua thiab zoo dua vuam zog. Raws li qhov tshwm sim, 429 raj tau pom tias muaj txiaj ntsig zoo hauv kev lag luam uas yuav tsum tau vuam thiab corrosion kuj. Feem ntau, 429 steel yeeb nkab tuaj yeem siv rau kev kho kom zoo nkauj hauv tsev xws li stainless hlau handrails, stair handrails, door handles, thiab lwm yam.; kev tsim cov combustion qhov chaw xws li burner nozzles thiab combustion chambers; Cov khoom siv hauv tsev xws li tub yees, tshuab ntxhua khaub ncaws, microwave ncu, thiab lwm yam.
Tshuaj Chemical Cheebtsam ntawm A268 TP429 Round Tube
| C | Mn | P | S | Si | Cr | |
| Feem pua | Tsawg dua lossis sib npaug rau 0.12 | Tsawg dua los yog sib npaug rau 1.0 | Tsawg dua lossis sib npaug rau 0.04 | Tsawg dua lossis sib npaug rau 0.03 | Tsawg dua los yog sib npaug rau 1.0 | 14.0-16.0 |
Mechanical Properties ntawm A268 TP429 Steel Pipe
| Qib | Tensile zog (MPa) min | Yield zog 0.2% Pov thawj (MPa) min | Elongation (% hauv 50mm) min | Hardness | |
| Rockwell IB (HR B) | Brinell (HB) | ||||
| 429 | 95 000 | 50 000 | 25 | - | 175 |
Lub cev muaj zog ntawm A268 TP429 Stainless Hlau Tube
| Qib | Qhov ceev (kg / m3) | Elastic Modulus (GPa) | Lub ntsiab lus Coefficient ntawm Thermal Expansion (mm / m / degree) |
Thermal conductivity (W/m.K) |
Tshwj xeeb kub 0-100 degree (J/kg.K) | Hluav taws xob tiv thaiv (nW.m) | |||
| 429 | – | – | 0-100 degree | 0-315 degree | 0-538 degree | ntawm 100 degree | ntawm 500 degree | – | – |
| 7750 | 200 | 10.4 | 11.0 | 11.4 | 23.9 | 26.0 | 460 | 600 | |
Specification ntawm A268 TP429 Tube
| Daim ntawv | Round, Square, Rectangular, "U" Shape, Hydraulic thiab lwm yam. |
| Txuj | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Phab ntsa Thickness | Teem caij 10 txog Teem caij 160 (3 hli txog 100 hli Thickness) |
| Ntev | Txog li 12.5m, Ib Leeg Random Length, Ob Chav Random Length Thiab Customize Loj |
| Xaus | Plain End, Beveled kawg, Treaded |
| Hom | Seamless / ERW / Welded / Fabricated / CDW |
| Sab Nraum Loj | Seamless - 1/2" NB TO 18" NB Welded / ERW- 1" NB TO 16" NB EFW - 8" NB TO 110" NB |
| Kev Xa Khoom | Raws li dov, tsim, Kev ntxhov siab, Annealed, Hardened, Tempered, Txias Kos |
| Txheej | Electropolish, Mechanical polish, Satin Finish, Passivated |
| Kev sim |
Kev soj ntsuam cov khoom, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (Post Weld Heat Treatment), Flare Test, Khoov Test, Hardness Test, Tensile Test thiab lwm yam. |
| Dimension | Tag nrho cov kav dej yog tsim thiab tshuaj xyuas / Kuaj rau cov qauv tsim xws li ASTM thiab ASME. |
| Kev Pabcuam Ntxiv | Kos / Expansion / Machining / Sand Blasting / Tua Blasting / Kub Kho |
| Ntim | Loose / Bundle / Ntoo Pallet / Ntoo Box / Plastic Cloth Wraps / Yas End Caps / Beveled Protector |
Tsim
Cov raj yuav tsum tau ua los ntawm cov txheej txheem seamless lossis welded yam tsis muaj cov hlau muab tub lim ntxiv.
Kev kho cua sov
Raws li kev kho cua sov zaum kawg, cov raj yuav tsum tau rov ua kom sov rau qhov kub ntawm 1200 degree F [650 degree] lossis siab dua thiab txias (raws li qhov tsim nyog rau qib) kom ua tau raws li qhov yuav tsum tau ua ntawm cov lus qhia no.
Martensitic qib UNS S 41500 yuav tsum tau rov ua kom sov rau qhov kub ntawm 950 degree F [510 degree] lossis siab dua thiab txias raws li qhov tsim nyog kom ua tau raws li qhov yuav tsum tau ua ntawm cov lus qhia no.
Surface condition
Tag nrho cov raj yuav tsum tsis pub dhau lub zeb nplai, haum rau kev tshuaj xyuas. Ib qho me me ntawm oxidation yuav tsis suav tias yog nplai.
Tshuag ntawm A268 TP429 Stainless Hlau Round Pipe
Qhov project ntawm A268 TP429 Pipe
