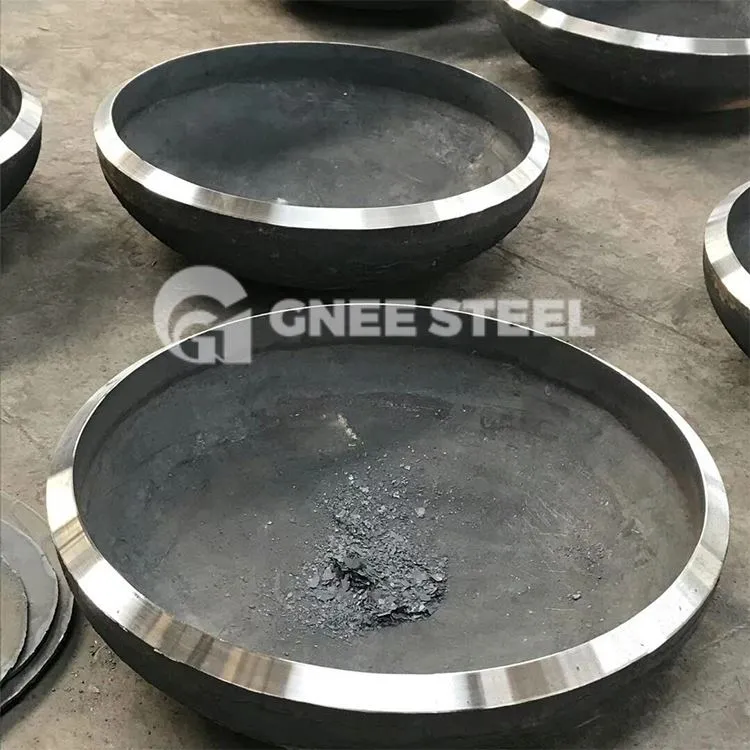

Thick Wall Pipe Cap
Thick Wall Pipe Cap
Thick Wall Pipe Cap

Thick Wall Pipe Cap

Lub taub hau yog qhov kawg npog ntawm lub nkoj siab thiab yog lub ntsiab lus tseem ceeb ntawm cov hlab ntsha siab. Nws txoj haujlwm yog sealing.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Lub taub hau yog hais txog cov khoom siv los kaw qhov kawg ntawm lub thawv kom cais tawm sab hauv thiab sab nraud, tseem hu ua lub hau kawg. Lub taub hau ntawm cylindrical ntim yog feem ntau tig cov plhaub. Raws li cov duab ntawm lub taub hau saum npoo, nws tuaj yeem muab faib ua convex, conical, ca thiab ua ke duab. Lub taub hau convex hais txog lub taub hau nrog lub ntsej muag sab nrauv, xws li hemispherical, oval, phaj-puab thiab kheej kheej taub hau yam tsis muaj flanges. Qee lub tog raj kheej roj siv lub convex sab hauv ua ke-zoo li hauv qab lub taub hau, uas tuaj yeem tsis tsuas yog ua kom muaj zog tab sis kuj ua tau raws li qhov xav tau ntawm kev siv nyab xeeb.

Loj: DN 15-DN1200

Phab ntsa thickness: SCH 5-SCH160
Daim ntawv: Hemispherical yeeb nkab cap, oval yeeb nkab cap, thiab saucer yeeb nkab cap

Pipe Cap tsim los ntawm cov ntaub ntawv zoo tshaj plaws:

Carbon steel kawg caps
Stainless hlau kawg caps
ASTM / ASME A234 WPB
ANSI B16.9 / 16.28
Cov kaus mom hlau raws li DIN 2617
TIAB SA 28011
End caps 18" API 5L X 46 - DIN28011
End caps 22" API 5L X 46 - DIN28011
End caps 48" API 5L X 46 - DIN28011
Torispherical taub hau raws li DIN 28011

Thick-wall Steel Pipe Cap Size Table

Code FOSTD - FOXS	Nominal Dia		Phab Th. S mm		Qhov siab H mm	Theoretical Nyhav kg
Code FOSTD - FOXS	Kev xaiv tsa.	D mm	STD	XS	Qhov siab H mm	STD	XS
5	1/2	21.34	2.77	3.73	25.4	0.03	-
7	3/4	26.67	2.87	3.91	25.4	0.06	0.08
10	1	33.40	3.38	4.55	38.1	0.10	0.14
12	1'' 1/4	42.16	3.56	4.85	38.1	0.14	0.18
15	1'' 1/2	48.26	3.68	5.08	38.1	0.16	0.23
20	2	60.32	3.91	5.54	38.1	0.27	0.32
25	2'' 1/2	73.02	5.16	7.01	38.1	0.41	0.45
30	3	88.90	5.49	7.62	50.8	0.65	0.82
40	4	114.30	6.02	8.56	63.5	1.15	1.54
50	5	141.30	6.55	9.52	76.2	1.90	2.59
60	6	168.27	7.11	10.97	88.9	2.92	4.10
80	8	219.07	8.18	12.70	101.6	5.07	7.3
100	10	273	9.27	12.70	127	9.1	12.0
120	12	323.9	9.52	12.70	152	13.6	17.0
140	14	355.6	9.52	12.70	165	14.42	19.8
160	16	406.4	9.52	12.70	178	18.86	25.89
180	18	457.2	9.52	12.70	203	27.65	36.52
200	20	508	9.52	12.70	229	35.60	46.98
240	24	609.6	9.52	12.70	267	46	64.60
