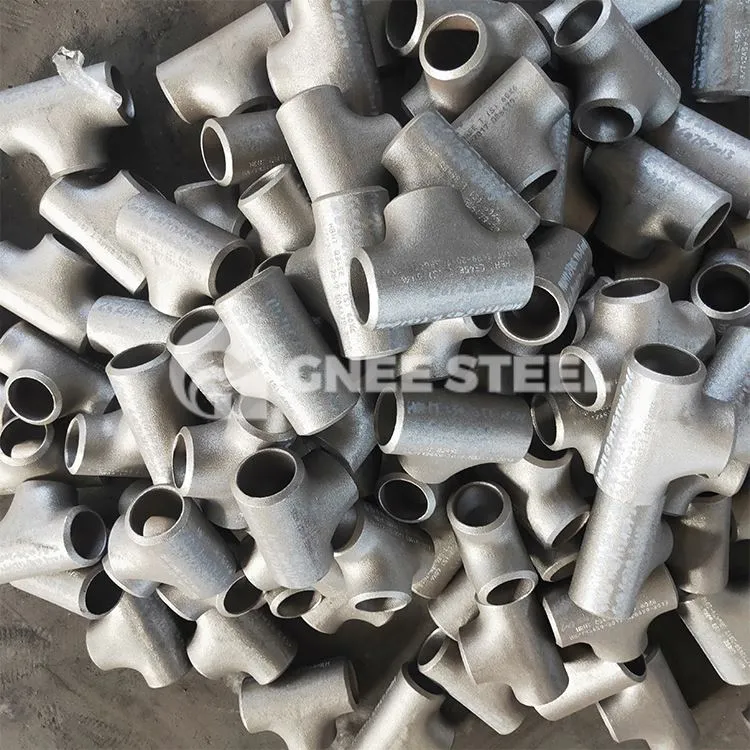

High Pressure Stainless Hlau Socket Weld Tee

High Pressure Stainless Steel Socket Weld Tee
High Pressure Stainless Steel Socket Weld Tee
High Pressure Stainless Steel Socket Weld Tee

High Pressure Stainless Hlau Socket Weld Tee

Tee tseem hu ua yeeb nkab haum tee lossis tee haum, tee sib koom ua ke, thiab lwm yam. Nws yog tsuas yog siv los hloov cov kev taw qhia ntawm cov kua dej thiab siv rau ntawm cov kav dej ntawm cov kav dej loj. Muaj peev xwm muab cais raws li cov yeeb nkab txoj kab uas hla. Feem ntau yog ua los ntawm carbon steel, cam khwb cia hlau, hlau alloy, stainless hlau, tooj liab, aluminium alloy, yas, argon, PVC thiab lwm yam ntaub ntawv.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Muaj ob hom kev siv siab siab tees, ib qho yog welded high-pressure tee, thiab lwm yam yog integrally forged high-pressure tee. Welded high-pressure tees yog ua los ntawm high-zoo high-pressure steel kav. Txoj kev tsim khoom zoo ib yam li kev khawb qhov rau hauv cov kav dej. Lub qhov nyob rau hauv lub ntsiab yeeb nkab yuav tsum ua raws li txoj kab uas hla ntawm cov ceg txuas txuas. Cov kev cai vuam zoo yog nruj. Preheating feem ntau yuav tsum tau ua ntej vuam, thiab kev kho cua sov yog ua tom qab vuam. Nws cov specifications thiab siab ntau yam yog tib yam li cov high-pressure luj tshib.

Txuj -ANSI/ASME:ASTM A182, ASTM SA182

Dimension:ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799

Loj:1/8" NB TO 4" NB

Chav kawm:2000LBS, 3000LBS, 6000LBS

Hom:Socket Weld Fitting Tee, Qhov (socket Weld Equal Tee), qhov (socket Weld tsis sib xws Tee).

Specification	Qhov siab	OD	S	S1	D	D1	C	C1	G	Thickness (Qhov Loj)	Thickness (Me me)	Qhov hnyav
1/2 * 1/4	50	33	22.3	14.5	15	8.5	9.5	9.5	15.5	5.4	9.3	0.4
1/2 * 3/8	50	33	22.3	18	15	11.8	9.5	9.5	15.5	5.4	7.5	0.4
3/4 * 3/8	63	38	27.5	18	20.2	11.8	12.5	9.5	19	5.3	10	0.5
3/4 * 1/2	63	38	27.5	22.3	20.2	15	12.5	9.5	19	5.3	7.9	0.5
1 * 1/2	70	46	34.5	22.3	25.9	15	12.5	9.5	22.5	5.8	11.9	0.7
1 * 3/4	70	46	34.5	27.5	25.9	20	12.5	12.5	22.5	5.8	9.3	0.7
1-1/4 * 1/2	79	57	42.7	22.3	34.3	15	12.5	9.5	27	7.2	17.4	1.2
1-1/4 * 3/4	79	57	42.7	27.5	34.3	20.2	12.5	12.5	27	7.2	14.8	1.1
1-1/4 * 1	79	57	42.7	34.5	34.3	25.9	12.5	12.5	27	7.2	11.3	1.1
1-1/2 * 1/2	89	63	48.8	22.3	40.1	15	12.5	9.5	32	7.1	20.4	1.5
1-1/2 * 3/4	89	63	48.8	27.5	40.1	20.2	12.5	12.5	32	7.1	17.8	1.4
1-1/2 * 1	89	63	48.8	34.5	40.1	25.9	12.5	12.5	32	7.1	14.3	1.3
1-1/2 * 1-1/4	89	63	48.8	42.7	40.1	34.3	12.5	12.5	32	7.1	10.2	1.2
2 * 1/2	108	76	60.8	22.3	51.7	15	16	9.5	38	7.6	26.9	2.4
2 * 3/4	108	76	60.8	27.5	51.7	20.2	16	12.5	38	7.6	24.3	2.3
2 * 1	108	76	60.8	34.5	51.7	25.9	16	12.5	38	7.6	10.8	2.2
2 * 1-1/4	108	76	60.8	42.7	51.7	34.3	16	12.5	38	7.6	16.7	2.1
2 * 1-1/2	108	76	60.8	48.8	51.7	40.1	16	12.5	38	7.6	13.6	2

Stainless hlau Tee

ss tee stainless tee
