p355g vs265g ua
Tshuaj muaj pes tsawg leeg
| Lub ntsiab | P355GH (EN 10028-2) | P265GH (EN 10028-2) | Qhov txawv tseem ceeb |
|---|---|---|---|
| Cov pa roj carbon (C) | Tsawg dua lossis sib npaug li 0.18% | Tsawg dua lossis sib npaug li 0.20% | P355GH muaj ib tugme ntsis qis tshaj cov ntsiab lus carbonrau kev txhim kho weldability thiab toughness ntawm cov qib siab zog. |
| Silicon (Si) | Tsawg dua lossis sib npaug li 0.60% | Tsawg dua lossis sib npaug li 0.40% | P355GH tso caisiab dua siliconrau kev txhim kho deoxidation thiab siab -kub scaling kuj. |
| Manganese (Mn) | 1.10–1.70% | 0.80–1.40% | P355GH muajsiab manganeselos txhawb nws lub zog siab dua thiab toughness xav tau. |
| Phosphorus (P) | Tsawg dua lossis sib npaug li 0.025% | Tsawg dua lossis sib npaug li 0.025% | Ob leeg muajnruj phosphorus txwvrau zoo toughness. |
| Sulfur (S) | Tsawg dua lossis sib npaug li 0.010% | Tsawg dua lossis sib npaug li 0.015% | P355GH muajstricter sulfur tswjkom huv si zoo dua thiab siab -kev ua haujlwm kub. |
| Molybdenum (Mo) / Lwm yam Alloys | Tej zaum yuav muaj kab mob Mo, Nb, V rau ntxiv dag zog | Feem ntau cov pa roj carbon monoxide -manganese raws li | P355GH tuaj yeem sivmicroalloying cov ntsiab luskom ua tiav lub zog siab dua yam tsis muaj kev cuam tshuam toughness. |
Mechanical Properties
| Khoom | P355GH (EN 10028-2) | P265GH (EN 10028-2) | Qhov txawv tseem ceeb |
|---|---|---|---|
| Yield zog (ReH) | Ntau dua lossis sib npaug li 355 MPa (rau thickness Tsawg dua lossis sib npaug li 16 hli) | Ntau dua lossis sib npaug li 265 MPa (rau thickness Tsawg dua lossis sib npaug li 16 hli) | P355GH muaj zog ntau dua tawm los, ua rau nws haum rau siab dua - cov ntawv thov siab. |
| Tensile zog (Rm) | 490-630 MPa | 410-530 MPa | P355GH muaj ib tugsiab zog tensile ntau yamkom tiv taus kev kub ntxhov ntau dua. |
| Elongation (A5) | Ntau dua lossis sib npaug li 20% (rau thickness Tsawg dua lossis sib npaug li 16 hli) | Ntau dua lossis sib npaug li 22% (rau thickness Tsawg dua lossis sib npaug li 16 hli) | P265GH muaj qhov elongation zoo dua me ntsis, tab sis ob qho tib si muab cov ductility txaus rau cov hlab ntsha siab. |
| Impact Toughness | Ntau tshaj lossis sib npaug rau 27 J ntawm 0℃lossis raws li tau teev tseg | Ntau tshaj lossis sib npaug rau 27 J ntawm 0℃lossis raws li tau teev tseg | Ob leeg xav tau kev ua tau zoo, tab sis P355GH lub zog siab dua yuav xav tauceev faj dua kev kho cua sovtswj nws. |
Lub cev (Mechanical{0}}Related) Properties & Application Comparison
| Khoom / Daim Ntawv Thov | P355GH | P265GH | Qhov txawv tseem ceeb |
|---|---|---|---|
| Kev kho cua sov | Feem ntau normalized (N) lossis quenched thiab tempered (yog tias xav tau) | Feem ntau normalized (N) lossis normalized dov | P355GH yuav xav tautswj kev kho cua sov ntau duakom ua tiav nws siab zog thiab toughness. |
| Npaj siv | Siab - cov hlab ntsha siab, boilers, thiab tuab - cov kav dej kav | Nruab nrab- cov hlab ntsha siab, boilers, thiab cov kav dej dav dav | P355GH yog tsim los rau siab dua - siab thiab siab dua - cov ntawv thov kubvim nws superior zog. |
| Weldability | Zoo, tab sis tej zaum yuav xav tau preheating/post-weld heat treatment rau tuab seem | Zoo, nrog cov txheej txheem vuam yooj yim | P355GH lub zog siab dua thiab alloying yuav xav tauceev faj dua kev siv vuamkom tsis txhob tawg. |
| High -Tsub Ua Haujlwm | Haum rau qhov kub txog li ~ 400℃(zoo ib yam li P265GH, tab sis muaj zog tuav ntau dua) | Haum rau kub txog li ~ 400 degree | Ob leeg ua tau zoo ntawm qhov kub nruab nrab, tab sis P355GH tuav lub zog zoo dua hauv qabsiab dua sab hauv. |
| Creep Resistance | Txhim kho vim muaj peev xwm microalloying | txwv | P355GH tuaj yeem muabzoo dua ntev - lub sij hawm siab - kub stabilityyog tias microalloyed. |
| Standard Reference | TS EN 10028-2 Cov hlab ntsha siab siab | TS EN 10028-2 Cov hlab ntsha siab siab | Ob leeg nyob rau hauv tib tus qauv, tab sis P355GH yog ib qhosiab dua - zog variant. |

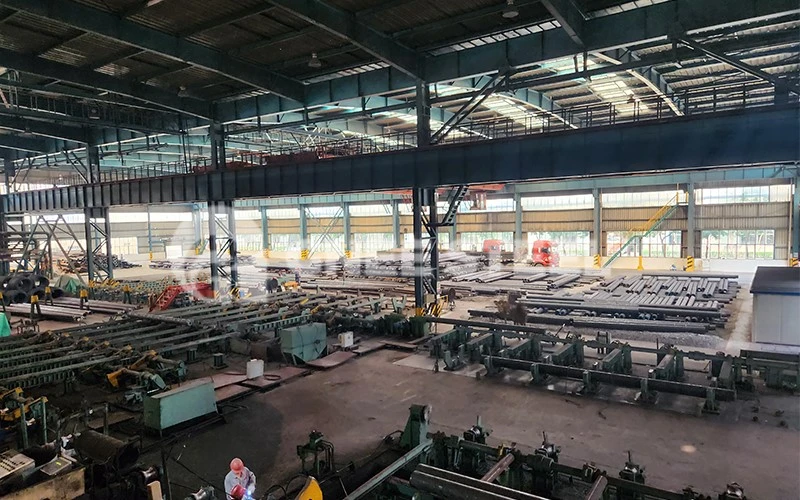

P355GH Steel yeeb nkab rau siab lub nkoj Hoobkas
