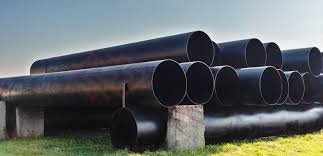

API 5L X65 Longitudinal Submerged Arc Vuam (LSAW) Pipe
Product Overview
API 5L X65 LSAW yeeb nkab yog lub siab -lub zog, siab - cov kav dej ua haujlwm tau tsim los rau kev thov kev siv kis. Nrog rau qhov tsawg kawg nkaus lub zog ntawm 65,000 psi (448 MPa), nws sawv cev rau qib siab ntawm cov kav dej uas nquag siv, ntsuas qhov tshwj xeeb ntawm lub zog nrog txaus toughness thiab weldability rau lub zog tseem ceeb hauv kev tsim kho vaj tse.
Technical Specifications ntawm ib Glance
Core Mechanical Properties
| Khoom | API 5L Yuav Tsum Tau | Hom Ntau Lawm |
|---|---|---|
| Yield zog (min) | 448 MPa (65,000 psi) | 460-550 MPa |
| Tensile zog (min) | 531 MPa (77,000 psi) | 535-650 MPa |
| Yield-rau-Tensile Ratio | 0.93 max (PSL2) | 0.85-0.92 |
| Elongation (min) | Raws li API qauv | 18-25% |
Manufacturing Size Lub hnab ntawv
| Parameter | Kev lag luam ntau | Kev Txiav Txim Tshwj Xeeb |
|---|---|---|
| Sab nraud txoj kab uas hla | 20 "-64" (508-1626 hli) | Txog 84 "(2134mm) |
| Phab ntsa Thickness | 8-40 hli | Txog li 60 hli (2.36 ") |
| Ntev | 12.2 m UAS | 6-18.3 m (los yog ntev dua) |
Advanced Material Design
Chemical Composition Strategy
API 5L X65 ntiav sophisticated microalloying kom ua tiav lub zog siab thaum tuav weldability:
Kev sib xyaw ua ke (PSL2, TMCP Txoj Kev)
| Element | Lub hom phiaj (%) | Metallurgical Function |
|---|---|---|
| C | 0.06-0.12 | Base zog (txo rau weldability) |
| Mn | 1.50-1.80 | Primary solid solution reinforcer |
| Nb | 0.03-0.06 | Grain refinement, nag lossis daus hardening |
| Ti | 0.010-0.025 | Grain refinement, sulfide zoo tswj |
| V | 0.04-0.08 | Ua kom dej nag ntxiv |
| Mo | 0.10-0.25 | Hardenability, siab -kub muaj zog |
| Ni | 0.10-0.30 | Tsawg-kub toughness |
| Cr | Tsawg dua los yog sib npaug li 0.25 | Kev daws teeb meem ntxiv dag zog |
| Cu | Tsawg dua los yog sib npaug li 0.25 | Atmospheric corrosion kuj |
| P | Tsawg dua los yog sib npaug rau 0.018 | Impurity txo qis |
| S | Tsawg dua lossis sib npaug li 0.003 | Ultra{0}} qis rau HIC tsis kam |
Cov pa roj carbon sib npaug (Max Limits):
CE(IIW)=C + Mn/6 + (Cr+Mo+V)/5 + (Ni+Cu)/15Tsawg dua lossis sib npaug li 0.42%
Pcm=C + Si/30 + Mn/20 + Cu/20 + Ni/60 + Cr/20 + Mo/15 + V/10 + 5BTsawg dua lossis sib npaug li 0.21%
Microstructural Engineering
| Txoj Kev Ua Haujlwm | Microstructure | Qhov zoo |
|---|---|---|
| TMCP | Acicular ferrite / bainite | Lub zog zoo heev - sib npaug toughness |
| TMCP + ACC | Nyob zoo os | Txhim kho lub zog tsis muaj kev cuam tshuam toughness |
| Quenched & Tempered | Tempered martensite | Uniform zog, siab zog |
| Li qub | Ferrite-Pearlite | Zoo toughness, tsoos txheej txheem |
Manufacturing Excellence
UOE Txheej Txheem Flow (Premium Quality)
ntawv nyeem
Hlau Phaj → Ultrasonic Inspection → Ntug Milling → Crimping → U-Nias Forming (180℃khoov) → O-Nias Forming (ua tiav kaw) → Pre-weld Cleaning → Internal SAW (4-xaim tandem) → 4-wire tandem (External SAW) → Mechanical Expansion (1.0-1.5%) → Hydrostatic Test → NDT Comprehensive Test → End Facing / Beveling → Txheej Txheej
Qhov tseem ceeb Welding Parameters
| Parameter | Internal Weld | Sab nraud Weld | Kev cuam tshuam zoo |
|---|---|---|---|
| Kub Input | 1.2-2.0 kJ / hli | 1.5-2.5 kJ / hli | HAZ toughness |
| Interpass Temp | Tsawg dua lossis sib npaug li 250 degree | Tsawg dua lossis sib npaug li 250 degree | Microstructure tswj |
| Hlau Alignment | ± 0.5 hli | ± 0.5 hli | Weld symmetry |
| Flux Basicity | 2.0-2.5 | 2.0-2.5 | Inclusion shape tswj |
| Vuam ceev | 1.0-1.5m / min | 1.2-1.8m / min | Kev nkag mus profile |
Expansion Technology
Expansion Ratio:0.8-1.5% txoj kab uas hla nce
Cov txiaj ntsig:
Txhim kho qhov tseeb qhov tseeb (roundness Tsawg dua lossis sib npaug rau 0.6% D)
Residual stress txo (40-60% txo)
Enhanced yield zog uniformity
Tshem tawm ntawm mechanical ovality
Kev Xeem Kev Xeem
Standard Test Matrix (API 5L PSL2)
| Qeb xeem | Txoj Kev Xeem | Ntau zaus | Kev lees txais |
|---|---|---|---|
| Tshuaj ntsuam xyuas | Spectrometry | Rau cua sov | Nyob rau hauv cov kev txwv |
| Tensile Test | API 5L Annex D | 1/100 cev | Rt0.5 Ntau dua lossis sib npaug rau 448 MPa, Rm Ntau dua lossis sib npaug rau 531 MPa |
| Transverse Tensile | - | 1/500 cev | Weld efficiency Ntau dua los yog sib npaug rau 90% puag hlau |
| Charpy V-Ntawv | API 5L Annex E | 1 / cua sov, 1/500 kav dej | Lub zog tshwj xeeb ntawm qhov ntsuas kub |
| Poob luj kua muag | API 5L Annex G | 1/500 cev | Shear cheeb tsam Ntau dua lossis sib npaug li 85% ntawm qhov ntsuas kub |
| Kev Tshawb Fawb Hardness | API 5L Annex F | Raws li tau teev tseg | Tsawg dua lossis sib npaug rau 248 HV10 (base, weld, HAZ) |
| Hydrostatic Test | API 5L Annex B | 100% | P Ntau dua lossis sib npaug rau (2St / D) × 0.95, tsis muaj dej |
| Kev kuaj Ultrasonic | API 5L Annex N/K | 100% | Tsis muaj qhov qhia tsis lees paub |
Cov Kev Ntsuas Ntxiv rau Cov Ntawv Thov Tseem Ceeb
| Daim ntawv thov | Kev kuaj ntxiv | Cov qauv |
|---|---|---|
| Sour Service | HIC, SSC, Plaub-Point Khoov | NACE TM 0284, TM 0177 |
| Offshore / Arctic | CTOD, Dav Phaj, Battelle DWTT | BS 7448, DNVGL-ST-F101 |
| Strain-Raws li Tsim | Round Bar Tensile, Bauschinger nyhuv | API 5L Annex H |
| Fracture Control | Ob -Cantilever Beam, CTOA | ASTM E399, E1820 |
Daim ntawv thov -Cov Lus Qhia Tshwj Xeeb
1. Offshore Pipeline Applications
| Kev xav tau | Specification | Tus nqi zoo rau X65 |
|---|---|---|
| Quav Siab | DNVGL-ST-F101 | Ntau tshaj lossis sib npaug rau 1.1 × Tsim siab |
| Propagating Buckle | Cov tub ceev xwm xav tau yog Pc> 0.8 × Py | Tsim tshwj xeeb |
| Fatigue Lub Neej | S-N nkhaus, Miner txoj cai | 10⁷ cycles ntawm tsim kev nyuaj siab |
| Corrosion Allowance | Raws li tus nqi corrosion | 3-6 hli typical |
| Fracture Toughness | CTOD ntawm qhov tsawg kawg nkaus temp | Ntau tshaj lossis sib npaug li 0.15 hli ntawm -10 degree |
2. Muaj peev xwm ua kua qaub
ntawv nyeem
HIC Test (NACE TM0284 Solution A): - Kev daws: 5% NaCl + 0.5% CH₃COOH saturated nrog H₂S - Duration: 96 teev - Kev lees txais: CLR Tsawg dua lossis sib npaug rau 15%, CTR Less dua lossis sib npaug li 5%, TM 7 lossis sib npaug rau 7% SSC Less Txoj Kev A): - Kev daws: 5% NaCl + 0.5% CH₃COOH - H₂S ib nrab siab: Ntau dua lossis sib npaug rau 0.1 bar - Kev Nyuaj Siab: 80-90% AYS - Duration: 720 hours yam tsawg kawg nkaus
3. Lim-Raws li qhov yuav tsum tau ua
| Parameter | Txoj Kev Xeem | Kev lees txais |
|---|---|---|
| Uniform Elongation | Round bar tensile | Ntau dua lossis sib npaug li 8% |
| Kev laus laus | 5% ua ntej- lim + 250℃× 1hr | ΔYS Tsawg dua lossis sib npaug li 50 MPa |
| Anisotropy | Los ntawm -thickness tensile | r-tus nqi Ntau dua lossis sib npaug rau 0.85 |
| Bauschinger nyhuv | Rov qab loading test | -factor raws li tau teev tseg |
Qib Kev Sib Piv & Kev Xaiv Phau Ntawv Qhia
Strength -Toughness Trade-tawm Kev Ntsuam Xyuas
| Qib | Min YS (MPa) | Hom CE | Max Thickness * | Hom CVN (-10 degree) |
|---|---|---|---|---|
| X60 | 414 | 0.40% | 35 hli | 50-70 J |
| X65 | 448 | 0.42% | 40 mm | 45-65 J |
| X70 | 483 | 0.45% | 45 hli | 40-60 J |
| X80 | 552 | 0.48% | 30 mm | 35-55 J |
* Qhov siab tshaj plaws thickness tsis muaj PWHT xav txog
Kev txheeb xyuas nyiaj txiag
Quality Control Innovations
Digital Manufacturing Integration
Tiag tiag - Sijhawm Saib Xyuas:
Vuam parameter taug qab (100% kaw)
Kev ntsuas kub (preheat, interpass)
Dimensional scanning (laser profileometry)
Advanced NDT Technologies:
Phased Array UT:Weld cheeb tsam ua tiav kev pab them nqi
TOFD (Lub sij hawm- ntawm- Davhlau Diffraction):Crack sizing raug
Automated UT Systems:100% lub cev thiab vuam tshuaj xyuas
Digital Radiography:Cov ntaub ntawv txuas mus tas li
Kev Tswj Xyuas Cov Ntaub Ntawv:
Txhua yeeb nkab nrog digital ntxaib
Traceability los ntawm steelmaking mus rau qhov kawg xeem
Blockchain{0}}raws li ntawv pov thawj (tawm tshiab)
Kev Tswj Xyuas Txheej Txheem
| Parameter | Tswj txwv | Kev ntsuas zaus |
|---|---|---|
| Yield zog | μ ± 2σ | Txhua qhov kev ntsuas tensile |
| Charpy Zog | Yam tsawg kawg + statistical margin | Txhua qhov kev xeem ntau |
| Phab ntsa Thickness | +10%/-5% nominal | Txhua yeeb nkab, ntau cov ntsiab lus |
| Tawm ntawm - ntawm - Roundness | Tsawg dua los yog sib npaug li 1.0% (post-expansion) | Txhua yeeb nkab, ob qho tib si kawg |
Ntiaj teb no Standards Compliance
International Qib sib npaug
| Txuj | Qib Qib | Cov Variations tseem ceeb |
|---|---|---|
| API 5L | X65, PSL 2 | Thawj specification |
| TS EN ISO 3183 | L450M | Metric npe |
| DNVGL-ST-F101 | TIAB SA 450 | Txhim kho cov kev xav tau ntawm ntug dej hiav txwv |
| CSA Z245.1 | 448 QAB II | Canadian tshuaj ntxiv |
| GB/T 9711 | L450M | Cov kev cai xeem ntxiv |
Qhov project -Tshwj xeeb Specifications
Plhaub DEP 31.40.10.17:Cov cai ntxiv Charpy
ExxonMobil GP 33-03:Txhim kho HIC xeem
Tag nrho GS PVT 55:Cov cai tshwj xeeb CTOD
Chevron CPTC 01:Kev soj ntsuam ntxiv weld
Engineering Design Data
Kev ntsuas siab Containment
Daim ntawv thov tsim Factor:
Gas kis tau tus mob:0.72 (Class 1) txog 0.40 (Class 4)
Cov kav dej ua kua:0.72 (ntev)
Offshore:0.72 (chav kev nyab xeeb ib txwm muaj)
Phab ntsa Thickness Formula (Modified Barlow):
ntawv nyeem
t=(P × D) / (2 × SMYS × F × E × T) Qhov twg: t=Tsim phab ntsa thickness (mm) P=Qhov siab tshaj plaws kev khiav hauj lwm siab (MPa) D=Sab nraud txoj kab uas hla (mm) SMYS=448 MPa rau X65 F=Tsim qauv (0.72{dinal} sib koom ua ke) LSAW) T=Kub derating yam (1.0 rau T Tsawg dua los yog sib npaug rau 121 degree)
Piv txwv: Deepwater Pipeline Design
Parameters:
OD: 24 "(610 hli)
Tsim siab: 25 MPa (3625 psi)
Dej qhov tob: 1500 m (sab nraud siab 15 MPa)
Tus Qauv Zauv: 0.72
Corrosion pub: 3 hli
Kev suav:
ntawv nyeem
t_pressure=(25 × 610) / (2 × 448 × 0.72 × 1.0 × 1.0) t_pressure=15250 / 645.12=23.64 hli t_collapse=Raws li DNVGL-}ST calibrationer (F1) typicalc t_final=Max(t_pressure, t_collapse) + kev tiv thaiv corrosion t_final=~ 28 hli + 3 hli=31 hli
Qhov project Case Studies
Major X65 LSAW Pipeline Projects
| Lub npe qhov project | Qhov chaw | Loj | Ntim | Cov yam ntxwv tseem ceeb |
|---|---|---|---|---|
| Nord Stream 2 | Dej hiav txwv Baltic | 48" × 30.9 hli | 1,200 km | Kev pabcuam qaub, dej tob |
| Keystone XL | Canada-USA | 36" × 19.1 hli | 1, 900km | Siab siab, lim-raws li |
| TurkStream | Hiav Txwv Dub | 32" × 31.8 hli | 930km ua | Dej tob, siab siab |
Kev Sib Tw & Kev daws teeb meem
Common Manufacturing Challenges
| Kev sib tw | Keeb kwm | Lub tswv yim Mitigation |
|---|---|---|
| HAZ Softening | High tshav kub input welding | Optimize vuam tsis, TMCP steels |
| Weld Hlau Toughness | Siab zog mismatch | Optimize muab tub lim hlau, tom qab-weld kho |
| Residual Stress | Kev tsim thiab vuam | Mechanical expansion, thermal stress nyem |
| Lamellar Tearing | Los ntawm -thickness stress | Z-kev taw qhia cov cuab yeej tswj, sib koom tsim |
| Hydrogen Cracking | Siab zog steel | Kev tswj hwm preheat nruj, qis -hydrogen xyaum |
Field Welding Considerations
Preheat kub:100-150℃(nyob ntawm CE thiab thickness)
Thaum tshav kub kub input range:1.0-2.5 kJ / mm (zoo rau toughness)
PWHT Requirements:Feem ntau tsis xav tau rau X65
Welding Consumables:Sib piv lub zog nrog overmatching toughness
Sustainability & Environmental Factors
Carbon Footprint txo
Khoom siv Efficiency:
Lub zog siab dua tso cai rau cov phab ntsa nyias nyias
15-20% qhov hnyav txo vs. X60 rau tib lub siab
Txo kev thauj mus los emissions
Manufacturing Innovations:
Zog-kev ua tau zoo TMCP vs. Q&T ua
Recycling ntawm steel seem (Ntau dua los yog sib npaug rau 95% recyclable)
Kev rov ua dua dej hauv cov txheej txheem tsim khoom
Pipeline Cov txiaj ntsig ua haujlwm:
Txo cov twj tso kua mis vim smoother ID
Txo qhov kev pheej hmoo ntawm kev tawg nrog siab - kev ncaj ncees welds
Lub neej ua haujlwm txuas ntxiv (50+ xyoo tsim)
Environmental Compliance
REACH Ua raws li:Kev sau npe ntawm cov tshuaj lom neeg
RoHS Ua raws:Kev txwv tsis pub muaj kev phom sij
Carbon Accounting:Embodied carbon qhia muaj
Environmental Product Declarations:Thib peb-tso pov thawj
Kev Txhim Kho Yav Tom Ntej & Kev Tsim Nyog
Kev Txawj Ntse
Kev tsim cov khoom siv:
X65 nrog CE <0.40% rau kev txhim kho weldability
Txhim khu kev pabcuam qaub
Txhim kho qis -kub toughness (-60 degree)
Manufacturing Innovations:
Kev lag luam 4.0 kev koom ua ke (IoT, AI saib xyuas)
Additive manufacturing rau fittings
Tiag - lub sij hawm hloov cov txheej txheem tswj
Kev Ntsuas & Kev Ntsuas:
Automated defect classification siv AI
Hauv - kab kev kwv yees cov cuab yeej cuab tam
Cov xov tooj digital rau ua tiav cov ntaub ntawv lifecycle
Kev Lag Luam Tsav Tsheb
Kev hloov hluav taws xob:Hydrogen thiab CO₂ thauj pipelines
Kev tshawb nrhiav dej tob:Kev xav tau siab ntxiv
Arctic Development:Ib puag ncig muaj peev xwm heev
Aging Infrastructure:Hloov kho thiab kho dua tshiab
Khoom Specifications Template
yaml
Technical Requirements for API 5L X65 LSAW Pipe 1. BASIC REQUIREMENTS: Standard: API 5L 47th Edition, PSL2 Grade: X65 (L450M) Manufacturing Process: UOE lossis JCOE nrog nthuav 2. DIMENSIONAL DATA: Nominal OD ± 5% lossis mmever. yog tsawg) Nominal WT: [ ] mm ( kam rau ua: +10%/-5%) Length: [ ] m ( kam rau ua: +100 mm/-0 mm) Tawm- ntawm -roundness: Tsawg dua lossis sib npaug li 0.8% tom qab nthuav dav {MPRO2AL: MRIES 3. ComATE} CE(IIW): Tsawg dua los yog sib npaug rau 0.42% - Pcm: Tsawg dua lossis sib npaug rau 0.21% - S: Tsawg dua lossis sib npaug rau 0.002% rau kev pabcuam qaub Cov Khoom Siv Hluav Taws Xob: - Yield Strength (Rt0.5): {1000}{100}{100}{101} 531-650 MPa - Y/T Ratio: Tsawg dua lossis sib npaug rau 0.93 - Uniform Elongation: Ntau dua lossis sib npaug rau 8% Toughness Requirements: - Charpy V-Notch: [ ] J ntawm [ ]℃- 5% sib npaug rau DWTT: - CTOD (yog tias xav tau): Ntau dua lossis sib npaug ntawm 0.15 hli ntawm [ ]℃4. KEV KAWM NTAWV: Yuav tsum tau xeem: - Hydrostatic: [ ] MPa rau [ ] vib nas this - UT lub cev thiab vuam: 100% - Tensile - tensile, peb lub hauv paus: -, transverse, H AZ, 100% - Tensile: 100% - Tensile, peb theem Kev Ntsuam Xyuas Ntxiv: - HIC/SSC: [NACE TM0284/TM0177] - Kev soj ntsuam Hardness: [API 5L Annex F] - Tag nrho-weld-hlau tensile 5. DOCUMENTATION: {{62} perificate EN 3. Thib peb-cov ntaub ntawv soj ntsuam xyuas ob tog - NACE daim ntawv pov thawj (yog tias tsim nyog) - Ua kom tiav cov ntaub ntawv pov thawj 6. KEV PAB CUAM: - Xaus kev tiv thaiv: lub kaus mom yas - txheej txheej sab nraud: [FBE/3LPE/3LPP] - Sab hauv txheej: [Epoxydling/loader]
Cov ntsiab lus tseem ceeb
✅ Optimal Strength - Tus nqi sib npaug:Kev lag luam feem ntau siab - zog daws
✅ Cov ntaub ntawv pov thawj:Ntau lub ntiaj teb installation keeb kwm
✅ Weldability zoo heev:CE qis dua cov qib siab dua
✅ Kev siv ntau yam:Haum rau ntau qhov chaw
✅ Advanced Manufacturing:Qhov zoo ib yam los ntawm kev tswj cov txheej txheem
✅ Comprehensive Standards:Zoo -txhais specifications thiab kuaj
Nco tseg: Technical specifications yog qhia. Lub peev xwm tiag tiag yuav txawv ntawm cov chaw tsim khoom. Rau qhov project- cov kev cai tshwj xeeb, sab laj nrog cov tuam txhab muaj ntawv pov thawj thiab ua tiav kev tsim nyog.
