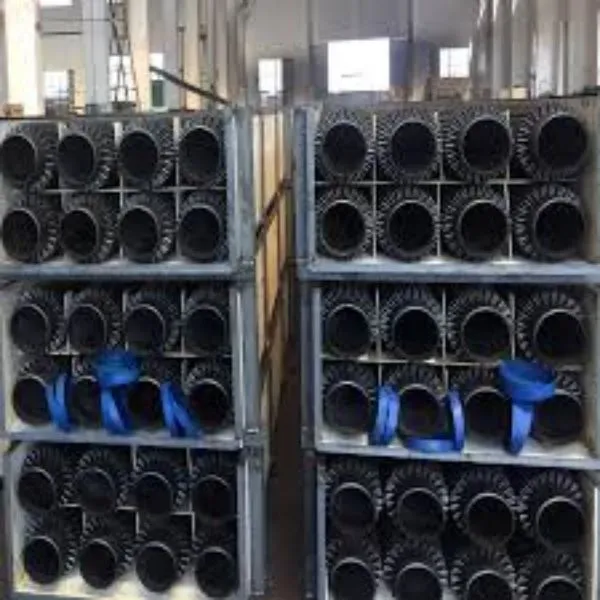

Studded Tube, Studded Pipe, Nailhead Pipe _Finned Tube
Khoom Description
Dab tsi yog studded yeeb nkab?
Studded Pipe kuj hu ua studded tubes, Nailhead Pipe lossis stud Pipe. Studded kav yog siv los ua lwm txoj rau finned tubes nyob rau hauv lub tshav kub exchangers feem ntau nyob rau hauv lub petrochemical kev lag luam qhov chaw yog raug rau tej corrosion thiab aggression los ntawm gasses thiab vapors. Studded fin tube yog tus qauv zaus hluav taws xob-ua haujlwm-welded studded hom nto. Studded yeeb nkab feem ntau weld round carbon steed studs ntawm carbon, alloy los yog stainless hlau hlab nrog diameters ntawm 1.5 "mus rau 12.75".
Yuav ua li cas los tsim cov yeeb nkab studded?
Studded yeeb nkab yog tsim los ntawm cov khoom siv hluav taws xob tiv thaiv stud vuam, uas tshwj xeeb tsim Studs nyob rau hauv kab ib ncig ntawm lub raj. Cov Studs tuaj yeem muab tau rau hauv ntau qhov ntau thiab tsawg thiab cov duab. Cov qauv uas cov studs tau teem rau ntawm lub raj kuj tuaj yeem sib txawv los ntawm kev hloov tus naj npawb ntawm cov studs ib kab nyob ib ncig ntawm lub raj, qhov sib nrug ntawm cov kab, thiab seb cov studs nyob ib sab kab yog offset. Nws kuj tseem tuaj yeem siv cov studs rau ib sab ntawm Tube, lossis siv ntau qhov sib txawv Qhov siab ntawm tib kab. Cov studs yog tes loaded rau hauv cov electrodes thiab ces cia li welded. Cov txheej txheem vuam tso cai rau kev sib xyaw ua ke ntawm txhua qib stud thiab raj, suav nrog carbon, alloy, stainless hlau, thiab nickel alloys siab. Tom qab studding, alloy steel kav yog kev ntxhov siab-relieved raws li cov lus qhia tshwj xeeb rau cov chav kawm steel
Studded yeeb nkab zoo:
Vim tias lawv cov tuab tuab dua li qhov sib piv rau cov fins, Studded yeeb nkab yog ib qho ntawm cov cuab yeej muaj zog tshaj plaws-ntev muaj. Txawm hais tias lub zog yuav tsis yog qhov kev txiav txim siab rau kev ua haujlwm ntawm kev hloov hluav taws xob, nws yuav yog ib qho tseem ceeb thaum daim ntawv thov yuav tsum muaj qhov txuas ntxiv los nqa qhov hnyav ntawm lub raj ntawm kev txhawb nqa, lossis qhov twg yuav tsum muaj kev tsim txom hnyav hauv kev pabcuam lossis thaum lub sijhawm tu.
Kev siv lub cev muaj zog:
Feem ntau cov ntawv thov rau cov tub ntxhais kawm ntawv yog cov txheej txheem kev kho cua sov ntawm kev lag luam petrochemical, nyob rau hauv cov cheeb tsam ntawm convection ncu, lub tshuab nqus tsev vacuum rau kev ua tshuaj, tshwj xeeb tshaj yog siv hauv cov roj av. Studded kav siab tsis kam nyob rau hauv ib puag ncig hnyav, xws li cov seem ntawm Sulfuric Acid atmospheres, ua rau nws muaj txiaj ntsig zoo rau kev lag luam hais.
Studded yeeb nkab loj thiab cov khoom siv:
|
Tube OD: |
25 ~ 355.6 hli (mm) |
1 "~ 14" (NPS) |
|
Tube Phab ntsa: |
3.5 ~ 28.6 hli |
0.14"~1.1" |
|
Tube Length: |
Tsawg dua lossis sib npaug li 25, 000 (mm) |
Tsawg dua los yog sib npaug li 82 ft |
|
Stud Dia.: |
6 ~ 25.4 hli (mm) |
0.23"~1" |
|
Stud Qhov siab: |
10 ~ 50.8 hli (mm) |
0.4"~2" |
|
Stud Pitch: |
8-30mm (hli) |
0.3"~1.2" |
|
Stud Shape: |
Cylindrical, Elliptical, Round, Lens hom |
|
|
Stud rau tube nto kaum: |
Vertical, angular, staggered kab |
|
|
Khoom siv: |
CS (qib feem ntau yog Q235B) SS (feem ntau qib yog AISI 304, 316, 409, 410, 321,347) A.S. |
|
|
Tube Khoom siv: |
CS (qib feem ntau yog A106 Gr.B) SS (qib feem ntau yog TP304, 316, 321, 347) AS (qib feem ntau yog T/P5,9,11,22,91) |
|
|
* Cov lus no yog siv los ua cov lus qhia dav dav rau peb lub peev xwm, thov hu rau peb rau lwm qhov xwm txheej. |
||
Khoom siv: Cov pa roj carbon steel ASTM A510 qib 1005 txog 1010. Alloy steels feem ntau siv hauv cov hlau studs.
ASTM A193 Qib: B6, B6X, B8, B8a, B8M, B8C, thiab lwm yam AISI 304, 316, 410, 347, 321
Cov studs yog teem rau hauv staggered kab (rings).
Txhua lub raj thiab cov khoom siv ua ke tuaj yeem tsim tau: carbon, stainless, thiab hlau alloy.
Peb tuaj yeem tsim ntau cov yeeb nkab steel / stud ua ke, suav nrog Carbon steel, Stainless hlau thiab lwm yam hlau alloys.
Stud tubes ua ke ua ke ntawm cov pa roj carbon sib txawv yuav tsum tau txais kev kho cua sov. Peb ua tiav qhov no ntawm qhov chaw, nrog peb lub qhov cub PWHT
Cim npe nrov: studded tube, studded yeeb nkab, ntsia thawv yeeb nkab_finned tube, Tuam Tshoj studded raj, studded yeeb nkab, ntsia thawv yeeb nkab_finned tube manufacturers, lwm tus neeg
