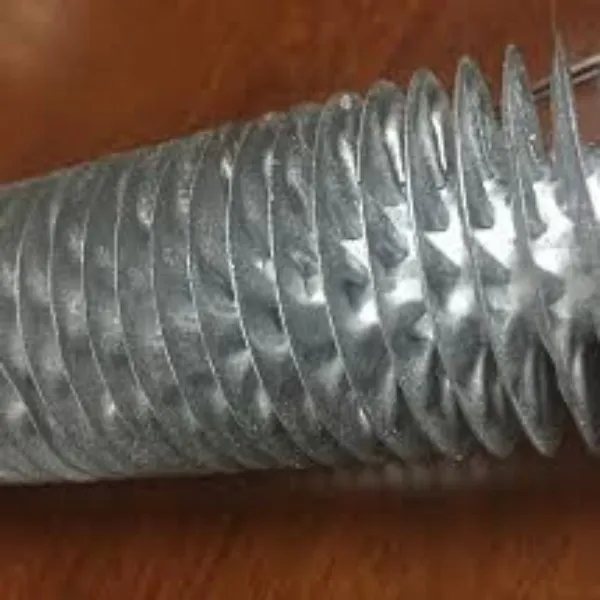

Kauv qhov txhab Finned Tube|Galvanized Finned Tube

Khoom Description

Spiral Wound Finned Tube| Galvanized finned tube|Kub dip galvanized txias qhov txhab finned raj hauv tsev cog khoom

Dab tsi yog Spiral Wound Finned Tube lossis Crimped Fin Tube?

Spiral Wound Finned Tube los yog Crimped Fin Tube yog spirally qhwv fins mus rau lub hauv paus raj, tsis muaj vuam, tab sis qhov chaw welded kawg.

Spiral Wound Finned Tube los yog Crimped Fin Tube cov khoom siv: Cov fin strip tuaj yeem yog tooj liab, carbon hlau, stainless hlau, cov hlau tsis muaj hlau thiab cov fins ntawm lub hauv paus soldered lossis tag nrho welded.

Helical crimped stainless hlau finned raj

Helical Tension Wound Finned Tubes rau Cua Txias

Txij li thaum cov hlau tsis muaj corrosion kuj, stainless hlau crimped fin raj tuaj yeem siv dav thaum qhov xwm txheej muaj qee qhov kev xeb lossis kev huv, xws li kev lag luam huab cua, cua sov, ziab thiab cua txias. Feem ntau yog siv nyob rau hauv fin tube tshav kub exchangers. Qhov siab tshaj plaws ua haujlwm kub yog 180 degree.

Spiral Wound Finned Tube los yog Crimped Fin Tube muab qhov siab dua airside turbulence thiab kub hloov ntawm tus account ntawm crimping ntawm fins piv rau L Hom Fin Tube.

Khoom Txheem ntawm crimped fin tube: Ob lub hauv paus raj thiab fin tuaj yeem yog carbon hlau thiab stainless hlau

Carbon hlau: A179, A192, SA210 Gr A1 / C, A106 Gr B Stainless hlau: TP304 / TP304L, TP316 / TP316L

Spiral Wound Finned Tube los yog Crimped Fin Tube Advantage thiab Daim Ntawv Thov

Txij li thaum cov hlau tsis muaj corrosion kuj, stainless hlau crimped fin raj tuaj yeem siv dav thaum qhov xwm txheej muaj qee qhov kev xeb lossis kev huv, xws li kev lag luam huab cua, cua sov, ziab thiab cua txias. Feem ntau yog siv nyob rau hauv fin tube tshav kub exchangers.

Qhov siab tshaj plaws ua haujlwm kub yog 180 degree.

Finned Tube Heaters:

Ob lub hauv paus raj thiab fin tuaj yeem yog tooj liab, carbon hlau thiab stainless hlau

Carbon hlau: A179, A192, SA210 Gr A1 / C, A106 Gr B

Stainless hlau: TP304 / TP304L, TP316 / TP316L

Specification ntawm crimped fin tube:

Base Tube OD: 15.88 ~ 51mm

Fin Pitch: 3.5 ~ 10mm

Fin Qhov siab: siab tshaj 16mm

Fin Thickness: {{0}}.2 ~ 0.4mm

Feature ntawm crimped fin tube

1. Fins thiab cov raj txuas nrog nruj

2. Uniform suab,

3. Me me quav,

4. Tsis muaj hmoov tshauv

5. Me me thermal tiv taus,

6. Muaj peev xwm hloov tau cov cua sov

7. Qhov siab tshaj plaws ua haujlwm kub: 120 degree

Helically Tension Wound Finned Tubes rau Cua Txias

Txij li thaum cov hlau tsis muaj corrosion kuj, stainless hlau crimped fin raj tuaj yeem siv dav thaum qhov xwm txheej muaj qee qhov kev xeb lossis kev huv, xws li kev lag luam huab cua, cua sov, ziab thiab cua txias. Feem ntau yog siv nyob rau hauv fin tube tshav kub exchangers.

Qhov siab tshaj plaws ua haujlwm kub yog 180 degree.

Stainless hlau Helical Crimped Fin Tube

Fin Hom: Crimped Fin Tube

Tube Khoom: Stainless hlau

Fin Khoom: Stainless hlau

Fin Tube Hom: Crimped, corrugated

Stainless hlau helical crimped fin tube piav qhia: Stainless hlau Helical Crimped Fin Tube, peb yog Crimped Fin Tube tsum & Crimped Fin Tube chaw tsim tshuaj paus nyob rau hauv Suav teb.

Kub Hloov Kauv Stainless Hlau Crimped Fin Tubes

Cov hlua hlau tuaj yeem yog tooj liab, carbon hlau, stainless hlau.

Tsis-ferrous raj thiab fins ntawm lub hauv paus soldered los yog tag nrho tinned.

Khoom Standard ntawm crimped fin tube

Ob lub hauv paus raj thiab fin tuaj yeem yog carbon hlau thiab stainless hlau

Carbon hlau: A179, A192, SA210 Gr A1 / C, A106 Gr B

Stainless hlau: TP304/TP304L, TP316/TP316L, T2

Advantage thiab Applications

Txij li thaum cov hlau tsis muaj corrosion kuj, stainless hlau crimped fin raj tuaj yeem siv dav thaum qhov xwm txheej muaj qee qhov kev xeb lossis kev huv, xws li kev lag luam huab cua, cua sov, ziab thiab cua txias.

Qhov zoo ntawm kub dip galvanized finned raj

1. Tus nqi ntawm kub-dip galvanized fin tube kev kho mob yog tsawg: tus nqi ntawm kub-dip galvanizing antirust yog qis dua li ntawm lwm cov xim txheej;

2. Cov kub-dip galvanized finned raj yog ruaj khov: nyob rau hauv suburban ib puag ncig, tus txheej txheem kub-dip galvanized antirust thickness yuav khaws cia rau ntau tshaj 50 xyoo yam tsis kho; nyob rau hauv nroog lossis thaj chaw sab nrauv, cov txheej txheem kub-dip galvanized antirust txheej tuaj yeem khaws cia rau 20 xyoo yam tsis muaj kev kho;

3. Kev ntseeg tau ntawm cov kub-dip galvanized finned tube yog qhov zoo: txheej txheej galvanizing thiab cov hlau yog metallurgical ua ke thiab dhau los ua ib feem ntawm cov hlau nto, thiab cov kav ntev ntawm cov txheej txheem tseem ceeb dua;

4. Lub toughness ntawm kub-dip galvanized fin tube txheej yog muaj zog: zinc txheej tsim ib tug tshwj xeeb metallurgical qauv, uas muaj peev xwm tiv taus mechanical puas thaum lub sij hawm thauj thiab siv;

5. Kev tiv thaiv zoo ntawm kub-dip galvanized finned raj: txhua qhov ntawm cov plated tuaj yeem coated nrog zinc, txawm tias nyob rau hauv kev nyuaj siab, lub kaum ntse ntse thiab qhov chaw nkaum tuaj yeem tiv thaiv los ntawm lub npe tag nrho;

6. Kub dip galvanized finned tube txuag lub sijhawm thiab kev siv zog: cov txheej txheem galvanizing sai dua li lwm txoj kev siv txheej txheej, thiab tuaj yeem zam lub sijhawm yuav tsum tau pleev xim rau ntawm qhov chaw tsim kho tom qab kev teeb tsa.

High zaus welding finned tube radiator rau txoj hlua hom thiab winding hom fin ua los ntawm qhov tsis zoo, thiab txhim kho los ntawm kev siv vuam ntau zaus yog cov khoom siv hluav taws xob muaj txiaj ntsig zoo ntawm finned tube, fin tube nws tus kheej yog strip thickness 0.{{1 }}mm winding nyob rau hauv lub finned raj, thiab cov txheej txheem welding high-frequency, lub vuam nyob rau hauv cov ntsiav tshuaj yeeb nkab, xyuas kom meej lub zog ntawm lub raj thiab fin, cov hlau kub siv tau mus txog 1. raws li lub caij winding nyiam.

Kauv finned tube yog cov khoom siv hluav taws xob hloov pauv tau zoo. Nws thaj chaw hloov hluav taws xob yog ob peb zaug mus rau ob peb zaug, nws tuaj yeem ntxiv dag zog rau kev hloov pauv cua sov, txo cov dej ntws tawm, txo cov hlau noj, txhawm rau txhim kho kev lag luam thiab kev lag luam kev ntseeg siab ntawm cov khoom siv hluav taws xob. Tam sim no, cov kauv finned raj tau dav siv nyob rau hauv ntau yam boilers.Cov qauv ntawm cov kauv finned raj yog qhia raws li daim duab saum toj no.

Specification unit ntawm kauv finned tube:

Txoj kab uas hla ntawm lub hauv paus raj yog 18-219mm

Lub hauv paus raj phab ntsa thickness: 2-8mm

Fin thickness 0 8-2 s

Fin qhov siab 10-30mm

Pitch 5-20 t

Fin tube ntev yog tsawg dua lossis sib npaug li 10000mm L

Lus Cim: 1. Lub rooj sab nraum cov lus qhia tshwj xeeb tuaj yeem ua los ntawm qhov kev thov sab pom zoo

2. Fin mus rau feem ntau tsawg dua 1/2 txoj kab uas hla

3. Lub Hoobkas tsim los ntawm cov kauv finned raj DG1020-97 JB/T6512-92 thiab lwm yam qauv

Kauv fin tube khoom specification thiab parameter daim ntawv teev

Galvanized finned tube Khoom siv: zoo tib yam carbon steel, stainless hlau, corrosion resistant steel, Seamless steel yeeb nkab, high zaus hluav taws xob welded steel raj

High zaus welded kauv fin raj hom thiab cov khoom siv

Vuam finned tube suav nrog: Khoom hom, Serrated hom

Cov khoom siv vuam: carbon steel, corrosion resistant steel, stainless hlau, alloy steel

High zaus welded kauv fin tube khoom siv ntau yam

Boiler economizer, fais fab nroj tsuag boilers, petrochemical engineering, tshav kub exchanger

High zaus welded kauv fin tube Base tube txoj kab uas hla: O 25- o D 140 mm

Raws li lub raj ntev L: 1-12 meters

Fin spacing t: 5-30 hli

Fin thickness Sn: 0 8-2.5 hli

HF: fin qhov siab feem ntau tsawg dua lub hauv paus raj vojvoog (8-30 hli)

Cold rolled composite fin tube

Tube: carbon hlau, stainless hlau, Alloy hlau

Fin: Aluminium

Cold rolled composite fin tube daim ntawv thov Scope

Thaum tshav kub kub exchanger, qhov cub

Ntau lawm ntau yam ntawm txias dov composite fin tube

Tube OD txoj kab uas hla: O 16- o 38 mm

Txoj kab uas hla ntawm txoj kab uas hla finned raj: O 35- o 70 mm

Qhov ntev ntawm L: 1-4 meters finned tube

Finned tube sib nrug ntawm t: 2.5, 3, 7 mm

Txhawm rau xa koj cov lus qhia sai peb yuav txaus siab tau txais koj cov lus nug ntxaws suav nrog:

• Cov khoom siv hauv lub raj

• Base tube loj (OD x WT x Length)

• Cov khoom siv Fin

• Fin hom

• Fin txoj kab uas hla lossis qhov siab

• Fin thickness

• Fins ib nti, 'meter' lossis fin pitch

• Ntev ntev, tsis muaj qhov xaus

• Finned Tube Quantity

(Ntxiv fabrication, xws li khoov los yog weld cov hlab rau hauv tubeplate los yog sib dhos)
