Extruded Fin Tube, Extruded Finned Tube, Aluminium Finned Tubes
Khoom Description

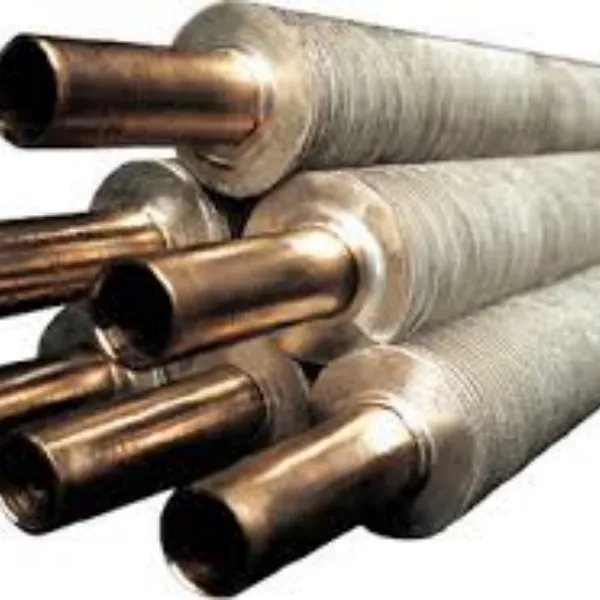

Dab tsi yog extruded aluminium fin tube?
Extruded aluminium fin tube yog tsim los ua ob-metallic raj. Extruded aluminium fin tube muaj xws li lub hauv paus raj thiab ib lub raj aluminium muff. Cov fins yog tsim los ntawm cov txheej txheem txias dov los ntawm phab ntsa tuab ntawm aluminium muff raj. Extruded fin muab kev tiv thaiv corrosion zoo heev rau lub hauv paus raj, vim tias lub hauv paus raj tsis pom ntawm qhov chaw nyob nruab nrab ntawm cov fins.
Yuav ua li cas fabricate lub extruded aluminium fin raj?
Lub extruded fin yog ua los ntawm ib txheej txhuas raj nrog ib tug tuab phab ntsa (muff) uas yog raws li nyob rau hauv ib tug puab puag raj. Ob lub raj raug thawb los ntawm peb lub arbors nrog rotating discs uas nyem los yog extrude cov txhuas fins thiab tawm ntawm cov khoom siv hauv cov khoom siv kauv hauv ib qho kev ua haujlwm. Yog li ntawd, lub hauv paus raj yog tag nrho txuas nrog lub ntsiab raj. Txij li cov fins no yeej tsis tawg, deform lossis loosen, lawv cov cua sov ua haujlwm tsis hloov lub sijhawm.
Insert tube into the aluminum muff tube-->compressing or rolling-->strip peeling-->washing--pressure test-->blast blowing-->ntim.
Extruded aluminium fin tube loj thiab cov khoom siv:
|
Extruded aluminium fin tube loj thiab cov khoom siv |
||
|
Tube OD |
10 ~ 51mm (hli) |
0.4"~2" |
|
Tube Phab Thk |
1.65 ~ 3. {3}} (mm) |
0.065"~0.118" |
|
Tube Length |
Tsawg dua lossis sib npaug li 18,500 (mm) |
Tsawg dua lossis sib npaug li 60.7 ft |
|
Fin Thk |
0.3 ~ 1.2 (mm) |
0.012"~0.047" |
|
Fin Qhov siab |
5-16 (mm) |
0.2"~0.63" |
|
Fin Pitch |
100-555 (mm) |
3 ~ 14 FPI |
|
Fin Hom |
Extruded |
|
|
Cov khoom sib xyaw |
||
|
Khoom siv Fin |
Aluminium (feem ntau qib: Alu.1100, Alu.1060, Alu. 6063) |
|
|
Tooj |
||
|
Tube Khoom |
CS (qib feem ntau: A179, A192, SA210 GrA1/C, A106 Gr B) |
|
|
SS (qib feem ntau: TP304, 316, 321, 347, A789) |
||
|
Tooj liab (feem ntau: UNS12200, 14200, 70600, CuNi70/30, CuNi 90/10) |
||
|
Titanium (feem ntau qib: B338Gr2) |
||
|
Applied kub |
300 degree |
|
|
Hom Kev Pabcuam |
Nruab nrab kub, hnyav atmospheric corrosive ib puag ncig. |
|
Extruded aluminium fin tube qhov zoo:
1. 100% fin-rau-tube daim ntawv cog lus muab kev ua haujlwm tshwj xeeb thiab ua haujlwm ntev.
2. Kev tiv thaiv corrosion zoo heev ntawm lub hauv paus raj.
3. Yooj yim los ntxuav nrog lub dav hlau dej siab tsis muaj deforming fins.
4. Raws li lub tes tsho sab nrauv tsis tu ncua Tsis muaj galvanic corrosion ntawm lub raj thiab fins.
5. Kev sib txuas ntawm cov raj sab nrauv thiab sab hauv tshem tawm qhov kev pheej hmoo ntawm kev poob ntawm kev sib cuag nrog cov txhuas vim thermal stress thiab fins yog kev co resistant.
6. Kev ua tau zoo ntawm kev hloov hluav taws xob ntau dua rau lub neej ntawm chav tsev.
7. Extruded Finned raj feem ntau siv rau hauv daim ntawv thov nrog kub txog 325 degree c.
Cim npe nrov: Tuam Tshoj extruded fin tube, extruded finned tube, aluminium finned tube, Tuam Tshoj extruded fin tube, extruded finned raj, aluminium finned tubes manufacturers, lwm tus neeg
