Dab tsi yog qhov zoo ntawm evaporation raj?
Enhanced evaporation tube yog hais txog lub raj tsim uas ua rau kom muaj cua sov hauv cheeb tsam los yog txhim kho cov cua sov ua haujlwm thaum lub sij hawm evaporation txheej txheem. Qhov kev tsim no yog tsom rau kev txhim kho cov kev hloov hluav taws xob thaum lub sij hawm evaporation txheej txheem. Feem ntau, cov txheej txheem xws li kev kho saum npoo, kev txhim kho cov khoom siv, thiab kev ua kom zoo dua qub yog ua haujlwm kom ua tiav cov qauv tsim cov evaporation zoo.
Txhim kho evaporation tube txoj cai
Qhov kev hloov pauv hluav taws xob tshiab no yog tsim los ua kom muaj zog vaporization boiling ntawm nws sab nrauv. Nws qhov tshwj xeeb kub conduction muaj peev xwm tshwm sim los ntawm cov qauv pore tshwj xeeb. Qhov kev ua kom zoo ntawm micro pore qauv mus dhau tsuas yog nce qhov chaw sib pauv cua sov; Nws txhim kho cov evaporation core, pab txhawb kev tshem tawm ntawm impurities thiab txo fouling. Qhov no, nyob rau hauv lem, minimizes sab nraud tshav kub tsis kam, ua rau ib tug tseem ceeb kev txhim kho nyob rau hauv thermal efficiency ntawm lub raj pauv. Lub puab nto ntawm lub raj nta kauv grooves ntxiv augment lub tshav kub hloov chaw thiab turbulence nyhuv, yog li txo qhov kub tsis kam nyob rau hauv lub raj.
Kev txhim kho sab hauv thiab sab nraud hloov hluav taws xob ua haujlwm tau zoo ua kom muaj peev xwm hloov tau cov cua sov ntawm lub raj. Qhov no tso cai rau kev txo qis hauv qhov ntim thiab qhov hnyav ntawm cov khoom siv hluav taws xob sib txawv, ua raws cov hom phiaj txuag hluav taws xob thiab txo nqi.

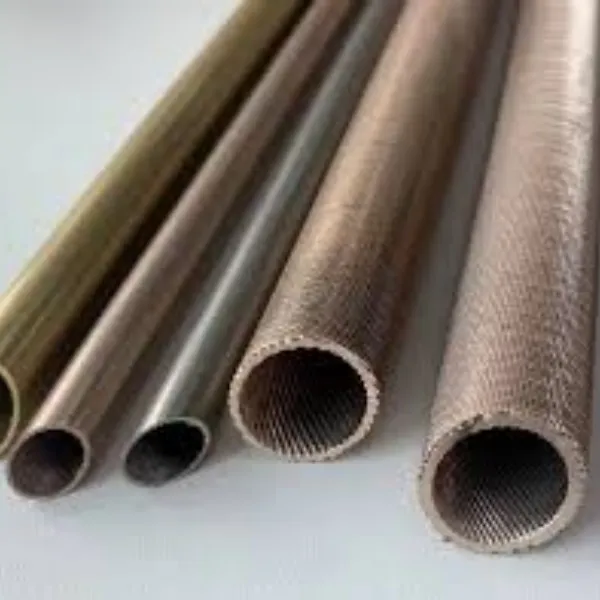

Enhanced evaporation tube khoom thiab loj
| Cov Qauv Ua Haujlwm | Ua raws li GB / T19447 lossis sib npaug rau ASTM B359, ASME SB 359. | |
| Khoom siv | Muaj nyob rau hauv liab tooj liab T2/TP2, hlau dawb tooj liab BFe10-1-1, complex tooj dag HSn70-1, HAl77-2, C12200, C44300, C68700, C70600, C71500 thiab lwm yam. | |
| xwm txheej | Wing clip H02, ntu ntu O60, lossis tag nrho O60. | |
| Specifications | Outer Diameter (Ua) | Φ15.88 ~ Φ25.4 hli |
| Thickness (rau) | 1 0-1.5 hli | |
| Fin Qhov siab (Hf1) | Tsawg dua los yog sib npaug li 1.70mm | |
| Fins Per Inch (FPI) | 40-56 tis/inch | |
| Fins Per Inch (FPI) | Tsawg dua los yog sib npaug li 5 m | |
| Ntim | Ruaj ntseg ntim rau hauv rooj ntoo. | |
Txhim kho evaporation tube thov
Lub raj evaporation zoo dua pom thawj daim ntawv thov hauv centrifugal chillers, dej chillers, thiab plhaub-thiab-tube kub exchangers ua haujlwm nyob rau hauv qhov sib txawv me me.
Cov raj no feem ntau siv rau hauv cov khoom siv hluav taws xob xws li evaporators, condensers, thiab heat exchangers. Hauv kev lag luam xws li chemical engineering, hluav taws xob tsim hluav taws xob, tub yees, thiab cua txias, kev txhim kho evaporating raj yog dav siv los txhim kho kev ua tau zoo ntawm kev hloov hluav taws xob.
