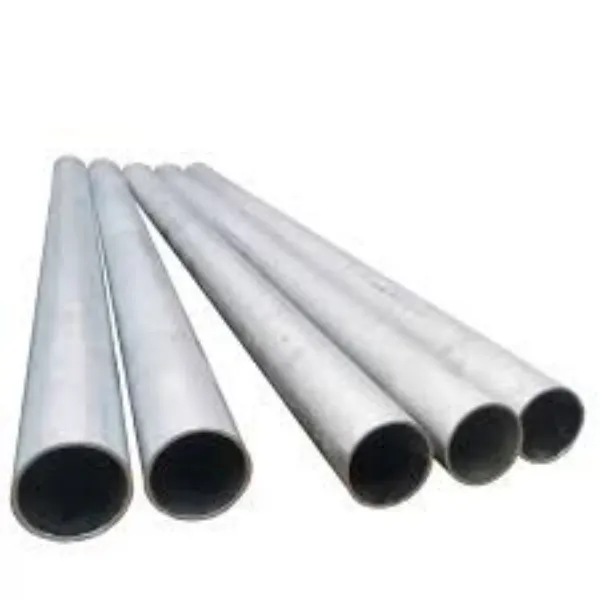

STPG410 steel welded yeeb nkab
STPG 410 carbon steel kav muaj cov tshuaj muaj pes tsawg leeg. Lawv feem ntau muaj txog 0.30-0.35% carbon, 0.30-0.90% manganese, 0.040% phosphorus, 0.040% sulfur, thiab me me ntawm silicon. STPG 410 cov kav dej yuav tsum tau ua kom tau raws li cov khoom siv tshwj xeeb, suav nrog lub zog tensile tsawg kawg, lub zog tawm los, thiab elongation. Cov khoom no ua kom cov kav dej muaj peev xwm tiv taus cov kev kub ntxhov.STPG 410 cov kav dej tuaj yeem welded siv cov txheej txheem vuam txheej txheem. Txawm li cas los xij, nws yog ib qho tseem ceeb kom ua raws li cov txheej txheem vuam tsim nyog thiab kev kho cua sov tom qab vuam kom muaj kev ncaj ncees ntawm cov khoom.
Tshuaj muaj pes tsawg leeg ntawm JIS G3454 STPG 410
| Tsab ntawv cim ntawm qib | Tshuaj muaj pes tsawg leeg% | ||||
| C | Si | Mn | P | S | |
| TIAB SA 410 | 0.30 max. | 0.35 max | 0.30 ~0.90 | 0.040 max. | 0.040 max. |
Mechanical Properties ntawm JIS G3454 STPG 410
| Tsab ntawv cim ntawm qib | Mechanical Properties | |||||
| Lub zog tensile | Yield zog | Elongation% | ||||
| kgf/m㎡ {N/m㎡} | kgf/m㎡ {N/m㎡} | No.11 thiab No.12 test pieces | No. 5 test pieces | No. 4 test piece | ||
| Ntev | Transverse | Ntev | Transverse | |||
| TIAB SA 410 | 42{412} feeb | 25{245} feeb | 25 feeb | 20 feeb | 19 feeb | 24 feeb |
Dimensions kam rau ua ntawm JIS G3454 Carbon Steel Pipes
| Kev faib | Tolerances ntawm sab nraud txoj kab uas hla | Tolerances ntawm phab ntsa thickness |
| Kub-tiav seamless steel yeeb nkab | 40 A los yog qis dua 【0.5mm | Hauv qab 4mm +0.6 hli -0.5 hli 4mm sau +15% -12.5% |
| 50A los yog tshaj li thiab incl. 125A 【1%】 | ||
| 150A 【1.6mm | ||
| 200A lossis tshaj 【0.8% Rau cov yeeb nkab ntawm nominal loj 350 A los yog tshaj, qhov tolerances nyob rau sab nraud txoj kab uas hla yuav raug txiav txim los ntawm kev ntsuas qhov ntev ntawm ib ncig. Hauv qhov no, qhov kam rau ua yuav tsum yog 【0.5%. |
||
| Cold-tiav seamless steel yeeb nkab thiab hluav taws xob kuj welded steel yeeb nkab | 25 A lossis qis dua 【0.3mm | Hauv qab 3mm 【{0}}.3 hli 3mm sau 【10% |
| 32 A lossis tshaj 【0.8% Rau cov yeeb nkab ntawm nominal loj 350 A lossis tshaj, qhov kam rau sab nraud tuaj yeem txiav txim siab los ntawm ntsuas qhov ntev ntawm qhov ncig. Hauv qhov no, qhov kam rau ua yuav tsum yog 【0.5%. |
Lub tuam txhab lub zog tseem ceeb nyob hauv kev muab cov khoom lag luam zoo thiab muaj ntau hom steel yeeb nkab kom tau raws li qhov ntau ntawm cov neeg siv khoom xav tau. Lub tuam txhab muaj cov cuab yeej tsim khoom thiab thev naus laus zis thiab tau cog lus rau cov khoom lag luam zoo thiab kev tsim kho tshiab, thaum muab kev pabcuam zoo rau cov neeg siv khoom thiab cov nqi sib tw los xyuas kom meej tias cov neeg siv khoom cov yeeb nkab steel xav tau nyob rau hauv ntau qhov chaw tau ntsib, yog li tsim kom muaj kev sib raug zoo nrog kev sib raug zoo.
Cim npe nrov: stpg410 steel welded yeeb nkab, Tuam Tshoj stpg410 steel welded yeeb nkab manufacturers, lwm tus neeg
