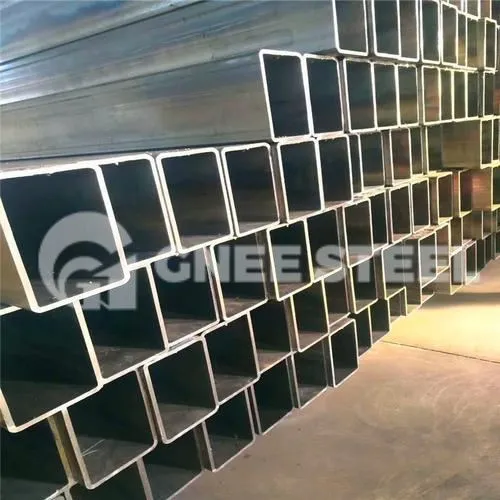

S235JR Welded Square Tube

S235JR cov kav dej yog cov kav dej tsis muaj hlau tsis sib xws, nrog qhov tsawg kawg nkaus lub zog ntawm 225MPa thiab lub zog tensile xws li 360 txog 510MPa. Lawv nthuav tawm elongation kev ua tau zoo ntawm ntau dua lossis sib npaug li 18% thiab feem ntau yog siv rau hauv cov khoom siv xws li lub tsev, txuas hniav, nkoj, thiab cov khoom siv tsheb. GNEE Group tshwj xeeb hauv kev muab cov kav dej zoo S235JR welded kav, tsim thiab sim nruj raws li ntau lub teb chaws tus qauv. Peb cov kav dej S235JR duab plaub tau raug xa tawm mus rau ntau dua 150 lub teb chaws thiab cheeb tsam, suav nrog Australia, New Zealand, Chile, Netherlands, thiab ntau dua. Thov hu rau peb yog tias koj muaj kev xav tau.

S235JR Square Hlau Tubing Specification

Yam khoom	Qib S235JR square Tube
OD	15 x 15 mm ({2}}} x 600 mm / 20 x 30 mm -600 x 800 mm
Phab ntsa Thickness	1.2 hli -20mm, SCH30, SCH40, STD, XS, SCH80, SCH160, XXS thiab lwm yam.
Ntev	Tsawg dua 12m
Cov khoom siv hlau	Q195 → S235JR
Txuj	BS EN10296, BS EN10025, BS EN10297, BS6323, BSEN10219, BSEN10217, GB/T13793-1992, GB/T14291-2006, GB/T3091-1993,GB/T3092-1993,GB3640-88
Kev siv	Siv rau kev tsim, Accessorize thiab Kev tsim kho
Kev kho saum npoo	Bared, Dub Painted (cov kua roj vanish txheej), Galvanized, Nrog Oiled, 3 PE, FBE, corrosion resistant txheej
Cov txheej txheem	Electronic Resistance Welded (ERW), Electronic Fusion Welded (EFW)
Tshooj Duab	Square thiab rectangular
Pob	Bundle, Nyob rau hauv Bulk, Hnab square galvanized steel hollow seem raj, Cov neeg siv khoom xav tau

GNEE S235JR Tubing Loj Table

20*20*0.6-2.0	25*25*0.6-2.0	30*30*0.8-3.0	40*40*0.8*4.0
50*50*1.0*5.0	60*60*1.2-6.0	70*70*2.0-6.0	75*75*2.0-6.0
80*80*2.0-8.0	90*90*2.0-8.0	100*100*2.0-12	120*120*3.0-12
125*125*3.0-14	130*130*3.0-12	140*140*3.0-12	150*150*3.0-12
160*160*4.0-12	180*180*4.0-12	200*200*4.0-14	220*200*4.0-16
250*250*6.0-16	280*280*6.0-16	300*300*6.0-16	350*350*8.0-16
400*400*8.0-16	450*450*10*20	lwm.

S235 JRSquare Structural Steel Yeeb Nkab











































S235JR Hollow Section Test:

Chemical Component Analysis, Mechanical Properties (Qhov kawg tensile zog, Yield zog, Elongation), Technical Properties (Flattening Test, Bending Test, Hardness Test, Impact Test), External Size Inspection, Hydrostatic Test, NDT TEST (ET TEST, RT TEST, UT TEST)

S235JR Square Pipe Ntim:

Peb pob siv cov hnab yas, steel hlua rau bundling, los yog raws li koj xav tau.

GNEE Services:

1. Kev cai steel yeeb nkab xaj tau txais.

2. steel yeeb nkab txiav cov kev pab cuam.

3. steel yeeb nkab txheej kev pabcuam muaj.

4. Cov ntaub ntawv soj ntsuam zoo ntawm cov yeeb nkab steel yog muab.

5. Muaj kev txhawb nqa kev soj ntsuam thib peb.
