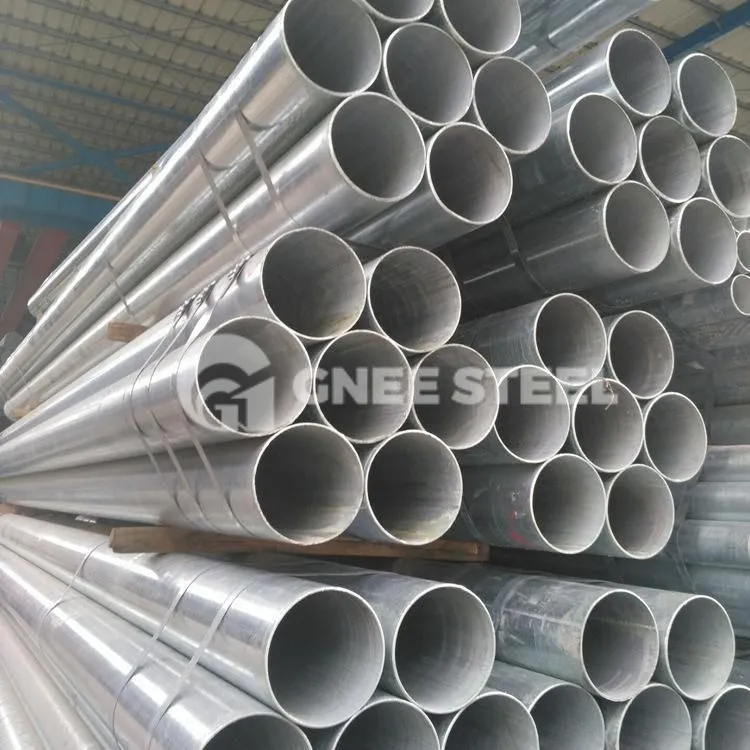

Galvanized Welded Hlau Yeeb Nkab Q355B

Q355B galvanized welded yeeb nkab yog tsim los ntawm low-alloy high-strength carbon steel daim hlau thiab ces undergoes galvanization. Feem ntau, Q355B steel kav muaj lub zog siab thiab tiv taus corrosion. Txawm li cas los xij, rau engineering tej yaam num thiab kev thauj mus los ib puag ncig uas yuav tsum tau siab, nto galvanization yog tsim nyog los tiv thaiv corrosion ntawm Q355B welded kav thiab txuas lub neej kev pab cuam ntawm Q355B steel kav.

Q355B Galvanized Welded Steel Yeeb Nkab Specification

Khoom siv	Tsawg carbon steel
Qib Steel	Q355B=S355JR / A500 Qib B Qib C
Txuj	EN 10219, EN 10210 GB/T 6728 JIS G3466 ASTM A500, A36
Nto Anti-rusty Txheej	pre-galvanized (Zinc txheej: 40-80g / m2) Kub dipped galvanized (Zinc txheej: 200-600g / m2)
Cov yeeb nkab kawg	Plain xaus
Daim ntawv pov thawj	ISO 9001 / SGS / CE
Packing thiab Shipping	1. OD 300mm thiab hauv qab no Nyob rau hauv hexagonal seaworthy bundles packed los ntawm steel strips, Nrog ob nylon slings rau txhua bundles 2. saum toj no OD 300mm nyob rau hauv tej los yog raws li kev cai xav 3. 25 tons / thawv thiab 5 tons / loj rau kev txiav txim mus sib hais; 4. Rau 20" thawv qhov ntev max yog 5.8m; 5. Rau 40" thawv qhov ntev max yog 11.8m.
Kev siv	Kev tsim kho / Cov khoom siv hauv tsev steel yeeb nkab Cov qauv steel yeeb nkab Hnub ci qauv tivthaiv steel yeeb nkab Lub laj kab ncej steel yeeb nkab Tsev cog khoom ncej steel yeeb nkab
Cov ntsiab lus lag luam	FOB, CFR, CIF, EXW, FCA
Cov nqe lus them nqi	T/T, LC
Lub sij hawm xa tuaj	15-45 hnub (raws li qhov ntau) tom qab tau txais cov nyiaj them siab tshaj los ntawm T/T lossis LC .
Kev lag luam loj	Southeast Asia, South Asia, Middle East, Europe, Middle & South America, Africa thiab Oceania

Tshuaj muaj pes tsawg leeg ntawm Q355B Galvanized Steel Pipe

Chemical Composition (Thermal Analysis), %, Tsawg dua lossis sib npaug
Qib Steel	Qib zoo	W	Yog lawm	Mn	P	s	Cr	Tsis muaj	Ass	N
Q355	Q355B	0.24	0.55	1.6	0.035	0.035	0:30	0:30	0.40	0.012
	Q355C	0.20			0.030	0.030				0.012
	Q355D	0.20			0.025	0.025				–

Vim li cas thiaj xaiv Q355B Steel?

Q355B: Cov khoom lag luam sib xyaw ua ke thoob ntiaj teb

Kev hloov kho ntawm Q345B steel yog qhov tseem ceeb ntawm GB / T 1591-2018 tus qauv tshiab. Kev taw qhia ntawm qib tshiab Q355B qhia txog nws qhov zoo sib xws rau European tus qauv EN 10025's S355JR los ntawm nws lub npe nws tus kheej.

Optimization ntawm Chemical Composition

Qhov kev sib raug zoo no tau cuam tshuam tsis tau tsuas yog nyob rau hauv qib qeb tab sis kuj nyob rau hauv cov tshuaj muaj pes tsawg leeg thiab txhua yam khoom. Piv txwv li, qhov txwv sab sauv ntawm cov ntsiab lus carbon tau nce los ntawm Tsawg dua lossis sib npaug rau {{0}}.20 txog 0.24, sib piv JR qib ntawm European tus qauv, thiab cov khoom tsis zoo xws li Cu tau khaws cia raws li ua raws li qhov ua tau nrog tus qauv European.

Hloov maj mam hloov hauv Mechanical Properties

Nyob rau hauv cov nqe lus ntawm txhua yam khoom, lub zog tawm los ntawm Q355B steel tau nce los ntawm ntau dua los yog sib npaug rau 345 MPa rau Q345B rau ntau dua lossis sib npaug rau 355 MPa. Tsis tas li ntawd, qhov tseem ceeb ntawm lub zog qis zog (ReL) tau hloov mus rau lub zog siab zog (ReH) cov qauv, raws li European qauv. Qhov kev hloov pauv no muaj kev cuam tshuam tsawg heev rau kev tsim khoom thiab kev siv thiab tuaj yeem suav tias tsis cuam tshuam rau kev tsim qauv thiab xaiv cov khoom siv.

Lub hom phiaj tseem ceeb ntawm kev hloov pauv tus nqi tawm los yog kom muaj kev sib haum xeeb nrog cov qauv European, txhim kho cov khoom sib hloov thiab txo cov nqi cuam tshuam nrog kev hloov pauv tsim.











































Lwm yam Q355B Yeeb Nkab Kev Muag Khoom

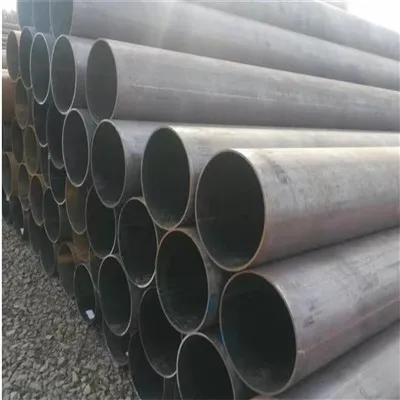

Q355B LSAW Steel Yeeb Nkab	Q355B SMLS Tube
Q355B Kub Rolled ERW Square Steel Pipes	Q355B Square yeeb nkab
Q355B Kub Rolled ERW Rectangular Steel Pipes	Q355B Kub dip galvanized steel kav
