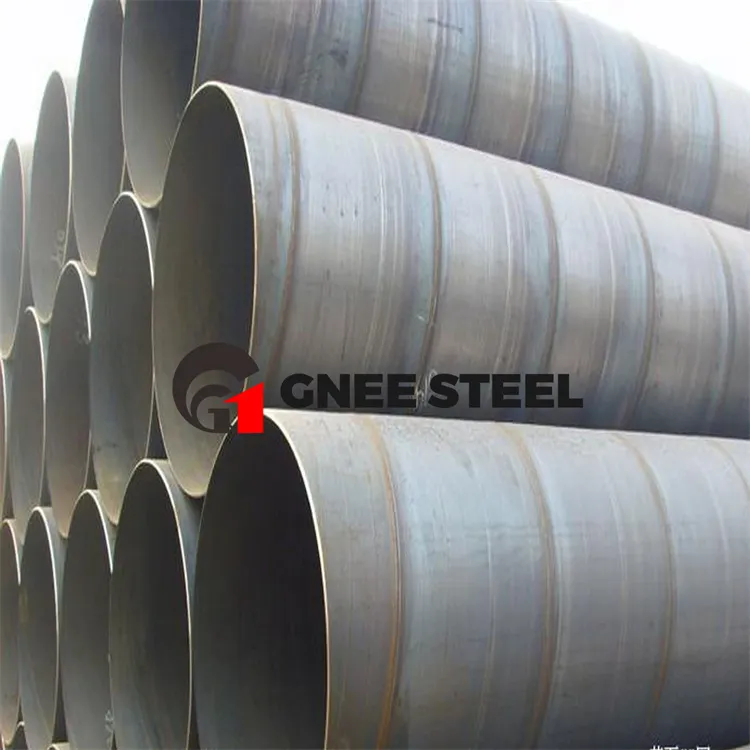

DIN17175 St35-8 35-4 Kauv Pipe
GNEE tsis tsuas yog tsim ST35.8 seamless raj nrog kawg fittings xws li bevels, couplings thiab flats, tab sis kuj tsim hydraulic, round, rectangular los yog square ST35.8 carbon steel hlab raws li cov neeg muas zaub 'yuav tsum tau.
Specifications
| Loj | 19-350 hli |
| Phab ntsa Thickness | 1.5 hli -50mm |
| Cov duab | Hloov |
| Txheej txheem | Cold drawn los yog Kub dov |
| Cov yeeb nkab ntev | Ib qho random ntev / Ob chav random ntev lossis raws li xav tau |
| Siv | Rau siab nruab nrab, tsis tshua muaj siab boiler thiab siab lub hom phiaj |
| Nto tiav | Antirust roj-dip, kua roj vanish, Passivation, Phosphating, txhaj tshuaj blasting |
Tshuaj muaj pes tsawg leeg
| Txuj | Qib | Tshuaj muaj pes tsawg leeg | |||||
| C | Si | Mn | P,S | Cr | Mo | ||
| TIAB SA 17175 | qib 35.8 | Tsawg dua lossis sib npaug rau 0.17 | 0.10-0.35 | 0.40-0.80 | Tsawg dua lossis sib npaug rau 0.030 | / | / |
Mechanical Property
| Qib | Tensile zog (MPa) | Yield zog (MPa) | Elongation (%) |
| qib 35.8 | 360-480 | Ntau dua lossis sib npaug li 235 | Ntau dua lossis sib npaug li 25 |
Daim ntawv thov
Siv hauv Hydraulic & pneumatic thooj voos kheej kheej, Mechanical thiab Automotive engineering.
Siv rau Precision steel raj siv.
Rau siab nruab nrab, qis-siab boiler thiab siab lub hom phiaj.
Kuaj
Tshuaj ntsuam xyuas muaj pes tsawg leeg
hydrostatictest
Tensile xeem
Notched cuam tshuam kuaj
Yield zog test
Nplhaib xeem
Kev kuaj tsis raug
Tube Flag
GNEE yuav muab tus lej cim 300 hli rau sab xis thiab sab laug ntawm qhov kawg ntawm tag nrho cov yeeb nkab steel xa mus rau kev kuaj thiab txais. Cov yeeb nkab qib lossis tus lej ntawm cov khoom yuav raug sau rau ntawm cov khoom.
Cov txheej txheem tsim khoom
Cov yeeb nkab steel ua raws li cov qauv yuav tsum tau tsim los ntawm kub lossis txias dov, kub nias, kos duab kub lossis kos duab txias.
Cov hlau siv hauv cov yeeb nkab steel yuav tsum tau tsim los ntawm cov tshuab pa oxygen, qhib hearth lossis hluav taws xob rauv.
Tag nrho cov hlau yuav raug tua.
Kev Xa Khoom
Cov raj yuav tsum tau muab cov cua sov kho kom haum rau lawv qhov ntev. Kev kho cua sov hauv qab no yuav tsum tau siv, nyob ntawm seb hom hlau: normalizing; subcritical annealing; hardening thiab tempering nrog tas li txias los ntawm hardening kub thiab tom ntej tempering; hardening thiab tempering nrog isothermal transformation.
DIN17175 ST35.8 Kauv Pipe
Cim npe nrov: DIN17175 St35-8 35-4 Kauv Pipe, Tuam Tshoj DIN17175 St35-8 35-4 Kauv Pipe tuam ntxhab, lwm tus neeg
