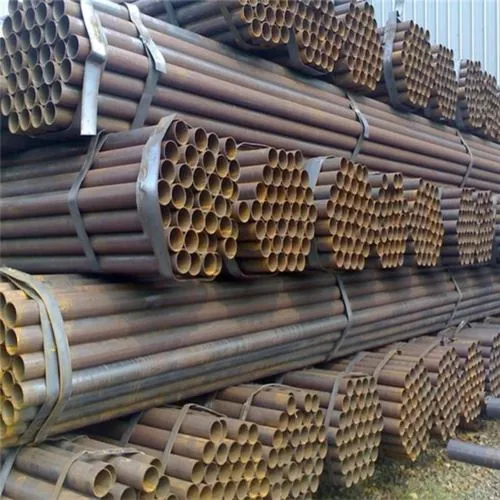

S355J2H Qauv ERW Steel Tube
Taw qhia rau S355J2H Cov Txheej Txheem Ua Haujlwm Welded Steel Pipe
EN 10210 S355J2H yog kub- dov hollow qauv seem tsim raws li European tus qauv EN 10210. Nws muaj qhov tsawg kawg nkaus tawm lub zog ntawm 355 MPa (phab ntsa thickness tsis tshaj 16 hli) thiab zoo heev toughness ntawm qhov kub thiab txias, muaj peev xwm tiv taus qhov cuam tshuam rau -20 degree. Qhov no ua rau nws zoo tagnrho rau ntau yam kev siv hauv kev tsim kho thiab engineering industries.
Kev tsim cov txheej txheem ntawm EN 10210 S355J2H Hlau Yeeb Nkab: EN 10210 S355J2H steel yeeb nkab tuaj yeem tsim siv cov txheej txheem seamless lossis welded. Ob txoj kev welding feem ntau suav nrog:
Resistance Welding (ERW): Cov txheej txheem no siv cov cua sov thiab siab rau vuam cov ntaub ntawv ua ke. Nws yog qhov ua tau zoo, tsim nyog rau kev tsim khoom loj, thiab siv tau rau cov kav hlau steel ntawm ntau cov phab ntsa thicknesses thiab cov ntaub ntawv.
Submerged arc welding (SAW): Submerged arc welding tsim ib qho arc nyob rau hauv ib txheej ntawm granular flux, ua rau kom tob tob thiab zoo dua weld zoo. Nws yog tshwj xeeb tshaj yog haum rau welding thicker profiles.
Tshuaj muaj pes tsawg leeg ntawm S355J2H (Hloov qhov tseem ceeb, wt.%)
|
Element |
C (Max) |
Si (Max) |
Mn (Max) |
P (Max) |
S (Max) |
N (Max) |
|
S355J2H |
0.22 |
0.55 |
1.60 |
0.030 |
0.030 |
0.012 |
Lus Cim: Cov nqi tseeb yuav txawv nyob ntawm qhov tuab thiab kev kho cua sov.
Mechanical Properties ntawm EN 10210 S355J2H
|
Khoom |
Tus nqi |
|
Yield zog (tsawg dua los yog sib npaug li 16 hli) |
Ntau dua lossis sib npaug li 355 MPa |
|
Tensile zog |
470-630 MPa |
|
Elongation (L0=5.65√S0) |
Ntau dua lossis sib npaug li 22% |
|
Impact Toughness (ntawm -20 degree) |
Ntau dua lossis sib npaug rau 27 J (rau J2 lub npe) |
Daim ntawv thov ntawm S355J2H Resistance Welded Pipe (ERW)
TS EN 10210 S355J2H steel yeeb nkab ua ke nrog lub zog siab, zoo weldability, thiab zoo heev qis - kub ua haujlwm, thiab yog dav siv nyob rau hauv ntau yam kev lag luam sectors, xws li: kev tsim kho thiab infrastructure, piping systems, marine thiab offshore engineering, lub zog kev lag luam, thiab cov hlab ntsha siab.
Hais txog peb pawg
GNEE STEEL Group tau tsom mus rau kev xa tawm steel rau nees nkaum xyoo, tso siab rau lub ntiaj teb cov khoom siv saw hlau los muab kev lag luam thoob ntiaj teb nrog siab -kawg welded kav uas tau lees paub los ntawm EN thiab ASTM. Nrog ib pab neeg tshaj lij thiab kev tsim khoom loj, nws muab ib qho - nres cov kev pab cuam los ntawm kev yuav khoom mus rau hla - ciam teb faib rau lub zog thiab cov phiaj xwm kev tsim kho, thiab nws cov khoom tau raug xa tawm mus rau ntau dua 40 lub teb chaws thoob ntiaj teb.
Cim npe nrov: s355j2h structural erw steel raj, Tuam Tshoj s355j2h structural erw steel raj manufacturers, lwm tus neeg
