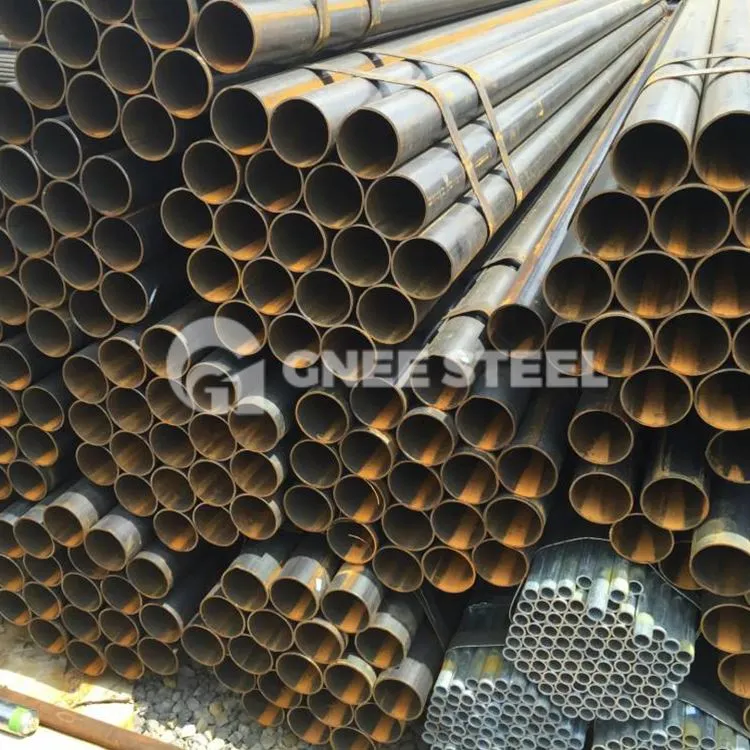

JIS G3452 SGP Welded Carbon Steel Tube
JIS G3452 SGP Welded Carbon Steel Tube
JIS G3452 SGP Welded Carbon Steel Tube

JIS G3452 SGP Welded Carbon Steel Tube

JIS G3452 yog ib qho ntawm Japanese cov qauv kev lag luam rau carbon steel kav. Nws qhia txog qhov yuav tsum tau muaj ntsig txog cov kav dej uas siv rau kev thauj cov ncu, dej, roj, roj, cua thiab lwm yam dej.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Tus qauv yog luam tawm los ntawm Japanese Industrial Standards Committee.JIS G3452 feem ntau yog siv rau cov ntawv thov uas tsis tshua muaj siab xws li cov khoom siv hluav taws xob sib txawv, cov kav dej tsis zoo, thiab cov lus piav qhia ntawm thermal tsim thiab kev ntsuas kev ntxhov siab.

G3452 Welded Steel Yeeb Nkab Specification

Khoom npe:	Carbon Steel Pipes Rau Ordinary Piping	Khoom siv:	Carbon Steel
Qib:	SGP	Txheem:	JIS G3452
Qhov Loj Loj:	OD {{0}}mmWT 0.5-50mm12000mm Hauv qab no	Daim ntawv thov:	Rau Ordinary Piping
Nto:	Dub los yog zinc txheej	Yam Khoom Txheej Txheem:	KS D 3507 ASTM A 53 API 5L DIN 2440 DIN2441 BS 1387 BS 3601

Yam tsawg kawg nkaus Order Quantity:	5 TONS
Nqe:	kev sib tham
Ntim Cov Lus Qhia:	Ntim rau hauv pob khoom lossis lub thawv ntoo lossis raws li kev thov
Lub sij hawm xa tuaj:	30-60 hnub tom qab tau txais koj cov nyiaj them poob haujlwm
Muaj peev xwm muab khoom:	5,000tons ib xyoos twg

JIS G3452 Qhov ntev, qhov hnyav thiab qhov ntev ntawm cov raj thiab cov kav dej

JIS G3452 Dimensions, Nyhav thiab Dimensional Tolerances
Nominal Dia		O.D.	OD Tolerances		W.T.	WT Kev Ua Haujlwm Zoo	Unit Mass Excluding Socket kg/m
A	B	mm	Cov kav dej yuav raug txiav hauv Taper Xov	Lwm Cov Yeeb Nkab	mm	WT Kev Ua Haujlwm Zoo	Unit Mass Excluding Socket kg/m
6	1/8	10.5	± 0.5 hli	± 0.5 hli	2	+Tsis teev -12.50%	0.419
8	1/4	13.8	± 0.5 hli	± 0.5 hli	2.3		0.652
10	3/8	17.3	± 0.5 hli	± 0.5 hli	2.3		0.851
15	1/2	21.7	± 0.5 hli	± 0.5 hli	2.8		1.31
20	3/4	27.2	± 0.5 hli	± 0.5 hli	2.8		1.68
25	1	34	± 0.5 hli	± 0.5 hli	3.2		2.43
32	1 1/4	42.7	± 0.5 hli	± 0.5 hli	3.5		3.38
40	1 1/2	48.6	± 0.5 hli	± 0.5 hli	3.5		3.89
50	2	60.5	± 0.5 hli	±1%	3.8		5.31
65	2 1/2	76.3	± 0.7 hli	±1%	4.2		7.47
80	3	89.1	± 0.8 hli	±1%	4.2		8.79
90	3 1/2	101.6	± 0.8 hli	±1%	4.2		10.1
100	4	114.3	± 0.8 hli	±1%	4.5		12.2
125	5	139.8	± 0.8 hli	±1%	4.5		15
150	6	165.2	± 0.8 hli	± 1.6 hli	5		19.8
175	7	190.7	± 0.9 hli	± 1.6 hli	5.3		24.2
200	8	216.3	± 1 0 hli	±0.8%	5.8		30.1
225	9	241.8	± 1.2 hli	±0.8%	6.2		36
250	10	267.4	± 1.3 hli	±0.8%	6.6		42.4
300	12	318.5	± 1.5 hli	±0.8%	6.9		53
350	14	355.6	–	±0.8%	7.9		67.7
400	16	406.4	–	±0.8%	7.9		77.6
450	18	457.2	–	±0.8%	7.9		87.5
500	20	508	–	±0.8%	7.9		97.4
