DIN 1628 St52.4 St 44.4 St37.4 Welded Steel Tubes

GNEE Group tau tshwj xeeb hauv kev tsim cov DIN 1628 steel kav rau 16 xyoo. Peb muab DIN 1628 ST37.4 welded kav, DIN 1628 ST44.4 welded kav, thiab DIN 1628 ST52.4 welded kav. Peb DIN 1628 welded kav yog tsim los siv ob qho tib si longitudinal thiab kauv seam vuam txheej txheem. DIN 1628 ST37.4, DIN 1628 ST44.4, thiab DIN 1628 ST52.4 steel kav uas tsim los ntawm GNEE Group yog tsim rau cov khoom tsim, ntim khoom, kav raj xa dej, nrog rau kev siv tshuab thiab ntsuas kev tsim khoom.

Raws li cov kws tshaj lij steel yeeb nkab chaw tsim khoom, peb tsis yog tsuas yog muab cov kav hlau zoo nkauj xwb tab sis kuj muab cov nqi sib tw thiab cov kev pabcuam tshuaj xyuas nruj. Peb tuaj yeem muab cov ntawv pov thawj kev soj ntsuam zoo rau cov kav dej steel. Yog tias koj xav kawm ntxiv, thov hu rau dawbtiv tauj pebthaum twg los tau.

DIN1628 ST37.4 ST44.4 ST52.4 EFW yeeb nkab Specification

Cov qauv	DIN EN 1628 Tube
Qib	ST37.4, ST44.4, ST52.4
Welded Yeeb Nkab Loj	5. 0 hli - 1219.2 mm
Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Yeeb Nkab Teem caij	SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
O.D.	6.35 hli OD txog 152 hli OD
Phab ntsa Thickness	{{0}}.020" -0.220", (cov phab ntsa tshwj xeeb muaj)
Ntev	Ib qho Random, Ob Chav Random, Txheem & Txiav ntev Yeeb Nkab & Tube
Ua kom tiav	Polished, AP (Annealed & Pickled), BA (Cim & Annealed), MF
Daim ntawv	Round, Hydraulic, 'U' khoov los yog Hollow, LSAW, Boiler, Ncaj Yeeb Nkab, Clad Pipe, Rectangular, Square Yeeb thiab lwm yam
Xaus	Plain End, Beveled End, Treaded Yeeb Nkab & Tube
Daim ntawv thov	Roj Yeeb Nkab & Tube, Gas Pipe & Tube, Fluid Pipe & Tube, Boiler Pipe & Tube, Kub Exchanger Tube
Peb kuj ua tautxiav, xov, thiabzawjDIN EN 1628 Tube kom ua tau raws li koj cov lus qhia tshwj xeeb.

DIN 1628 St37.4, ST44.4, ST52.4 Tubes Tshuaj Chemical Composition

Qib steel		Hom deoxidation (RR, tua tag nrho)	Tshuaj muaj pes tsawg leeg, % los ntawm huab hwm coj
Cim	Khoom Naj Npawb		C max	Si max	Mn max	P max	S max	Ntxiv cov nitrogen fixing ntsiab (piv txwv li tsis tsawg dua 0.020 % Al tag nrho)
Ib 1628 St37.4	1.0255	RR	0.17	0.35	Ntau dua lossis sib npaug rau 0.35	0.040	0.040	Yog lawm
Ib 1628 St44.4	1.0257	RR	0.20	0.35	Ntau dua lossis sib npaug rau 0.40	0.040	0.040	Yog lawm
Ib 1628 St52.4	1.0581	RR	0.22	0.55	Ntau dua lossis sib npaug rau 1.60	0.040	0.035	Yog lawm

DIN 1628 ST37.4 ST44.4 ST 52.4 Hlau Tube Mechanical Properties

Qib steel		Upper yield kev nyuaj siab ReH rau phab ntsa thicknesses, hauv mm		Tensile zog Rm N / hli2	Elongation tom qab tawg N / hli2 min		Txoj kab uas hla ntawm khoov mandrel rau qhov khoov kuaj ntawm fusion welded tubes 1) N / hli2	Lub zog cuam tshuam 2) ntawm niam txiv hlau (ISO V-match test pieces Thaum + 20 degree
Cim	Khoom Naj Npawb	mus 16	16 mus rau 40		Ntev	Hloov		Ntev	Transverse 3)
		N / hli2 min			% min			% min
Din 1628 St 37.4	1.0255	235	255	350 5) rau 480	25	23	2 s	43	27
Din 1628 St 44.4	1.0257	275 4)	265 4)	420 5) rau 550	21	19	3 s	43	27
Din 1628 St 52.4	1.0581	355	345	500 5) rau 650	21	19	4 s	43	27
1) s yog wail thickness ntawm raj (saib sub clause 5.5.5).
2) Tus nqi nruab nrab ntawm peb qhov kev xeem; tsuas yog ib tus nqi yuav poob qis ntawm tus nqi tsawg kawg nkaus los ntawm tsis pub tshaj 30%
3) Cov txiaj ntsig no tseem siv tau yog tias qhov cuam tshuam lub zog raug kuaj nyob rau hauv qhov chaw ntawm qhov vuam rau cov raj uas muaj sab nraud qhov ntev tshaj 500 hli, thiab phab ntsa thicknesses tsis tsawg dua 10 hli.
4) Rau cov tub ntxhais txias tiav hauv NBK mob (annealed saum toj ntawm qhov hloov pauv sab sauv hauv qab tiv thaiv roj lossis hauv lub tshuab nqus tsev), qhov tsawg kawg nkaus ntawm cov txiaj ntsig kev ntxhov siab qis dua cov txiaj ntsig los ntawm 20N / mm2 tau tso cai.
5) Rau qhov txias tiav nyob rau hauv NBK mob, qhov tsawg kawg nkaus qhov tseem ceeb ntawm tensile zog qis dua cov nqi ntawm 10N / mm2 tau tso cai.

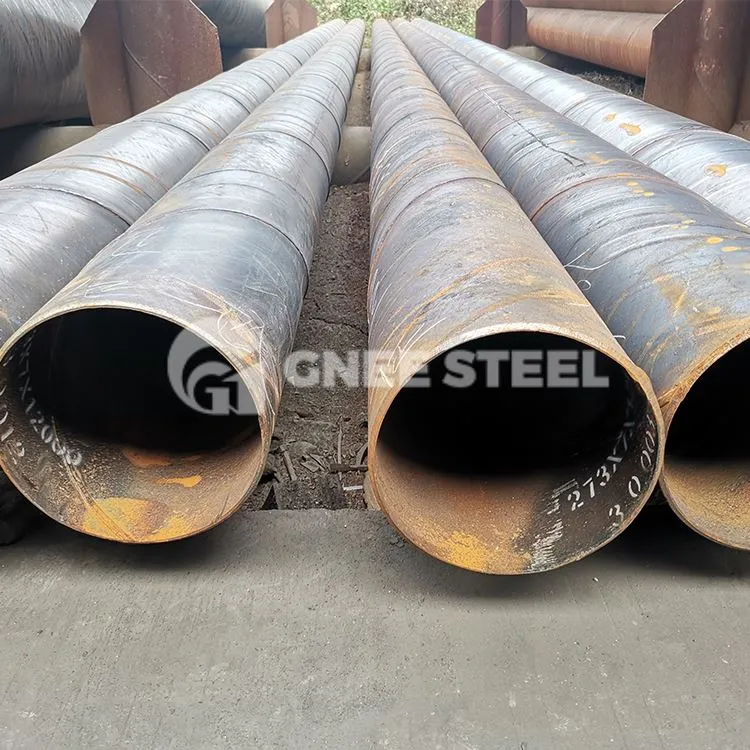

DIN 1628 Welded Steel Yeeb Nkab











































Vim li cas thiaj xaiv GNEE DIN1628 Yeeb Nkab

• Daim ntawv pov thawj los ntawm SGS, ISO thoob ntiaj teb lub cev, daim ntawv pov thawj muaj.
• Nrog 16 xyoo dhau los ntawm kev tsim thiab xa tawm cov kav hlau, peb muab kev pabcuam rau koj.
• Peb muab kev pabcuam steel yeeb nkab, tsim cov kav dej raws li koj xav tau.
• Peb muab cov kev kuaj xyuas zoo ntawm cov yeeb nkab steel nrog rau kev ntsuas kev ua haujlwm ntawm lub cev, kuaj cov khoom siv tshuaj lom neeg, kev sim hardness, kuaj tsis muaj kev puas tsuaj, eddy tam sim no kuaj, thiab lwm yam, nrog rau muab cov ntaub ntawv soj ntsuam zoo.
• Peb muab cov kev pabcuam steel yeeb nkab xws li txiav, txheej, grooving, galvanizing, thiab lwm yam.
