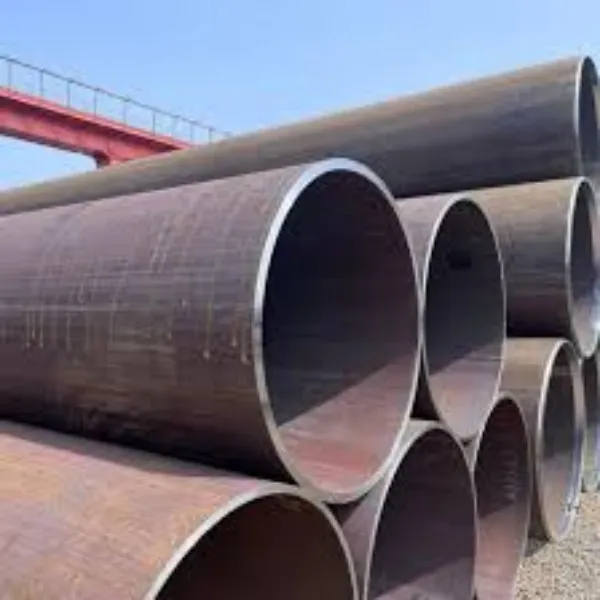

A53 Hluav Taws Xob- Resistance Welded Yeeb Nkab
A53 Tube Specifications
Gnee Steel Cov khoom lag luam muaj ntau yam ntawm A/SA53-B welded yeeb nkab hauv:
Qhov ntau thiab tsawg: 1/8 "NPS to 26" OD
Teem sijhawm: S / 10, S / 20, S / 40, STD, S / 60, S / 80, XH, S / 100, S / 120, S / 140, S / 160 thiab XXH
Scope
ASTM A53 thiab ASME SA53 yog npaj rau kev siv tshuab thiab kev siv siab thiab tseem siv tau rau kev siv zoo tib yam hauv chav dej, dej, roj thiab cua. Nws yog qhov tsim nyog rau kev siv vuam thiab kev tsim cov haujlwm uas muaj xws li coiling, dabtsi yog khoov, thiab flanging, raug rau qee yam kev tsim nyog.
Nrhiav rau cov kev pab cuam tom qab tsim khoom tshwj xeeb? Saib peb daim ntawv teev tag nrho.
Khoom siv thiab kev tsim khoom
Cov yeeb nkab welded yuav tsum tau ua los ntawm cov txheej txheem hauv qab no: qhib-hearth, hluav taws xob rauv, los yog cov pa oxygen. Weld seam ntawm hluav taws xob tiv thaiv welded yeeb nkab hauv Qib B yuav tsum tau kho cua sov tom qab vuam.
Kev xav tau tshuaj
| Hom E | Hom F | ||||
| (electric- kuj welded) |
(qhov cub- welded yeeb nkab) |
||||
| Qib A | Qib B | Qib A | |||
| Cov pa roj carbon max. % | 0.25 | 0.30* | 0.3 | ||
| Manganese% | 0.95 | 1.2 | 1.2 | ||
| Phosphorus, max. % | 0.05 | 0.05 | 0.05 | ||
| Sulfur, max. % | 0.045 | 0.045 | 0.045 | ||
| Tooj liab, max.% | 0.40 | 0.40 | 0.4 | ||
| Nickel, max. % | 0.40 | 0.40 | 0.4 | ||
| Chromium, max. % | 0.40 | 0.40 | 0.4 | ||
| Molybdenum, max. % | 0.15 | 0.15 | 0.15 | ||
| Vanadium, max. % | 0.08 | 0.08 | 0.08 | ||
| *Rau txhua qhov kev txo qis hauv qab no {{0}}.01% qis dua cov pa roj carbon siab tshaj plaws, qhov nce ntawm 0.06% manganese saum toj no qhov siab tshaj plaws yuav raug tso cai mus txog qhov siab tshaj ntawm 1.65% (tsis siv rau SA53) . | |||||
Permissible Variations nyob rau hauv Phab ntsa Thickness
Qhov tsawg kawg nkaus phab ntsa thickness ntawm ib qho chaw yuav tsum tsis txhob ntau tshaj 12.5% raws li lub nominal phab ntsa thickness teev.
Permissible variations in Weights per Foot
Ntxiv lossis rho tawm 10%
Permissible variations in Outside Diameter
Sab nraud txoj kab uas hla ntawm txhua qhov chaw yuav tsum tsis txhob sib txawv ntawm tus qauv teev ntau tshaj:
Tensile Requirements
| Hluav taws xob tiv taus-welded | Nruam-Welded | |||
| Qib A | Qib B | |||
| Tensile zog, min., psi | 48,000 | 60,000 | 45,000 | |
| Yield zog, min., psi | 30,000 | 35,000 | 25,000 | |
Kev Ntsuas Hydrostatic
Hydrostatic tshuaj ntsuam xyuas lub siab rau qhov kawg thiab threaded thiab txuas yeeb nkab yog teev. Hydrostatic siab yuav tsum tau khaws cia tsis pub tsawg tshaj 5 vib nas this rau txhua qhov ntau thiab tsawg ntawm seamless thiab hluav taws xob tiv thaiv-weld yeeb nkab.
Mechanical Tests Specified
Tensile Test - Transverse xav tau ntawm ERW rau NPS 8 thiab loj dua.
| Degree ntawm Bend | Txoj kab uas hla ntawm Mandrel | ||
| Rau ib txwm siv A53 | 90 | 12 x npe. o cev | |
| Rau Kaw Coiling | 180 | 8x npe. o cev |
Flattening Test - NPS 2 thiab loj XM thiab cov phab ntsa sib dua.
Ntev
| Txheem Nyhav | |
| Tib Random - 16′ – 22′. 5% tuaj yeem yog cov sib koom ua ke. Yog Plain Ends - 5% tej zaum yuav yog 12′ – 16′. | |
| Ob Chav Random - Qhov Ntev Ntev 22′, qhov nruab nrab yam tsawg kawg nkaus rau kev txiav txim 35′. | |
| Ntxiv Strong thiab Ob Chav Ntxiv Muaj Zog | |
| Ib leeg Random - 12′ -22′. 5% yuav yog 6' - 12'. | |
| Muab ob npaug rau Random (XS thiab sib dua) - Ntev Ntev 22′, qhov nruab nrab yam tsawg kawg nkaus rau kev txiav txim 35′. | |
| Ntev ntev dua li ib qho random nrog phab ntsa thicknesses hnyav dua XS raug kev sib tham. | |
Yuav tsum muaj cov cim ntawm txhua qhov ntev
(Ntawm cov ntawv txuas rau txhua pob hauv rooj plaub ntawm Bundled Pipe)
