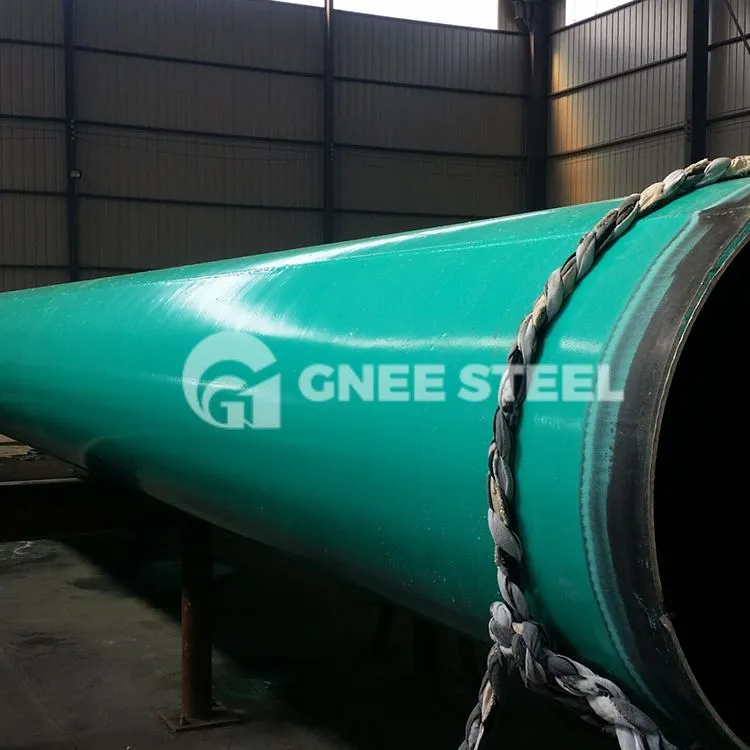

3LPE Polyethylene Epoxy Txheej Yeeb Nkab
3LPE Welded Steel Tube Supplier-GNEE
3LPE coated kav yog siv rau hauv cov roj thiab roj, kev tsim hluav taws xob, hluav taws xob, kev tsim nkoj thiab lwm yam kev siv uas yuav tsum tau txo qis hnav. Peb txheej ntawm 3LPE yeeb nkab txheej muab cov qauv zoo. Thawj txheej yog primer uas khi rau cov yeeb nkab, lub thib ob txheej yog ib tug copolymer uas ua raws li ib tug tuav nplaum rau peb txheej, thiab lub thib peb txheej yog ib tug tawv polyethylene nrog tiag tiag hnav thiab tsim kua muag. Qhov sib ntxiv ntawm cov khaubncaws sab nraud povtseg muab peb-txheej polyethylene-coated yeeb nkab rau lub neej ntev txog 75 xyoo. Qhov no txo cov nqi thiab ua rau lub raj xa dej kom zoo dua. 3 txheej ntawm epoxy txheej tuaj yeem siv rau txhua hom yeeb nkab ua los ntawm cov hlau thiab lwm yam ntaub ntawv.
|
Txheem: |
API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS 5950, ASTM A572, JIS, IS, |
|
Daim ntawv pov thawj: |
EN10217, EN10219, API 5L PSL1 / PSL2, API 5CT |
|
Tawm Dia: |
219 1 - 3048 hli |
|
Phab ntsa Thickness: |
5 - 30 hli |
|
Ntev: |
Mus txog 70 m |
|
Steel Qib: |
API 5L: GR A, GR B, X42, X46, X56, X60, X65, X70 |
|
ASTM A252 GR 1, GR 2, GR 3 |
|
|
ASTM A53: GR A, GR B, GR C, GR D |
|
|
BS 4360: Qib 43, Qib 50 |
|
|
EN: S275, S275JR, S355JRH, S355J2H |
|
|
Kev kho deg: |
Fusion daim ntawv cog lus Epoxy txheej, Coal Tar Epoxy, 3PE, Vanish Txheej, Bitumen txheej, Dub Roj txheej raws li cov neeg siv khoom xav tau |
|
Kuaj: |
Chemical Component Analysis, Mechanical Properties (Qhov kawg tensile zog, Yield zog, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), External Size Inspection, Hydrostatic Test, X-ray Test. |
|
Mill Test Certificate: |
EN 10204/3.1B |
3LPE Steel Yeeb Nkab DN Rooj
|
Nominal Diameter ntawm Hlau Yeeb Nkab (DN) |
Epoxy txheej |
Adhesive Txheej |
Min Thickness ntawm Anti-Corrosion Txheej (mm) |
|
|
(mm) |
(a/μm) |
(mm)/ua |
Hom dav dav |
Txhim kho hom |
|
DN Tsawg dua lossis sib npaug rau 100 |
Ntau tshaj los yog sib npaug rau 120 |
Ntau dua lossis sib npaug li 170 |
1.8 |
2.5 |
|
100 |
/ |
/ |
2 |
2.7 |
|
250 |
/ |
/ |
2.2 |
2.9 |
|
500 Tsawg dua lossis sib npaug rau DN<800 |
/ |
/ |
2.5 |
3.2 |
|
DN Ntau dua lossis sib npaug rau 800 |
/ |
/ |
3 |
3.7 |
3LPE Welded Steel Yeeb Nkab
Cim npe nrov: 3lpe polyethylene epoxy txheej yeeb nkab, Tuam Tshoj 3lpe polyethylene epoxy txheej yeeb nkab manufacturers, lwm tus neeg
